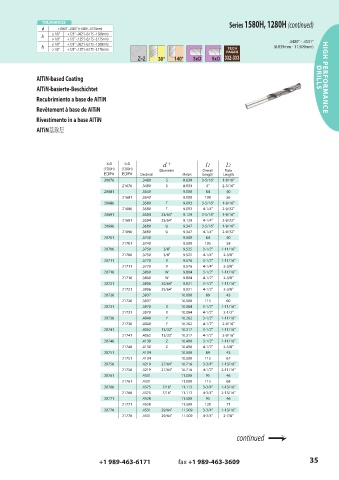

Page 35 - GARR_TOOL(CATALOG_INT)

TOLERANCES Series 1580H, 1280H (continued)
d +.0000" –.0005" (+.0000 –.0127mm)
≤ 1/8" +.125" –.062" (+3.175 –1.588mm)
l1
> 1/8" +.125" –.125" (+3.175 –3.175mm) .3480" - .4531"
≤ 1/8" +.125" –.062" (+3.175 –1.588mm)
l2 (8.839mm - 11.509mm)
>1/8" +.125" –.125" (+3.175 –3.175mm)
3xD 5xD 332-333

AlTiN-based Coating DRILLS HIGH PERFORMANCE
AlTiN-basierte-Beschichtet

Recubrimiento a base de AlTiN
Revêtement à base de AlTiN
Rivestimento in a base AlTiN

涂层
基
AlTiN基涂层

3xD 5xD d † l1 l2
(1580H) (1280H) Diameter Overall Flute
EDP# EDP# Decimal Metric Length Length
20676 .3480 S 8.839 3-5/16" 1-9/16"
21676 .3480 S 8.839 4" 2-3/16"
20681 .3543 9.000 84 40
21681 .3543 9.000 100 56
20686 .3580 T 9.093 3-5/16" 1-9/16"
21686 .3580 T 9.093 4-1/4" 2-9/32"
20691 .3594 23/64" 9.129 3-5/16" 1-9/16"
21691 .3594 23/64" 9.129 4-1/4" 2-9/32"
20696 .3680 U 9.347 3-5/16" 1-9/16"
21696 .3680 U 9.347 4-1/4" 2-9/32"
20701 .3740 9.500 84 40
21701 .3740 9.500 105 58
20706 .3750 3/8" 9.525 3-1/2" 1-11/16"
21706 .3750 3/8" 9.525 4-1/4" 2-3/8"
20711 .3770 V 9.576 3-1/2" 1-11/16"
21711 .3770 V 9.576 4-1/4" 2-3/8"
20716 .3860 W 9.804 3-1/2" 1-11/16"
21716 .3860 W 9.804 4-1/2" 2-3/8"
20721 .3906 25/64" 9.921 3-1/2" 1-11/16"
21721 .3906 25/64" 9.921 4-1/2" 2-3/8"
20726 .3937 10.000 89 43
21726 .3937 10.000 115 60
20731 .3970 X 10.084 3-1/2" 1-11/16"
21731 .3970 X 10.084 4-1/2" 2-1/2"
20736 .4040 Y 10.262 3-1/2" 1-11/16"
21736 .4040 Y 10.262 4-1/2" 2-9/16"
20741 .4062 13/32" 10.317 3-1/2" 1-11/16"
21741 .4062 13/32" 10.317 4-1/2" 2-9/16"
20746 .4130 Z 10.490 3-1/2" 1-11/16"
21746 .4130 Z 10.490 4-1/2" 2-5/8"
20751 .4134 10.500 89 43
21751 .4134 10.500 115 67
20756 .4219 27/64" 10.716 3-3/4" 1-13/16"
21756 .4219 27/64" 10.716 4-1/2" 2-11/16"
20761 .4331 11.000 95 46
21761 .4331 11.000 115 68
20766 .4375 7/16" 11.113 3-3/4" 1-13/16"
21766 .4375 7/16" 11.113 4-3/4" 2-13/16"
20771 .4528 11.500 95 46
21771 .4528 11.500 120 71
20776 .4531 29/64" 11.509 3-3/4" 1-13/16"
21776 .4531 29/64" 11.509 4-3/4" 2-7/8"

continued ?

+1 989-463-6171 fax +1 989-463-3609 35
