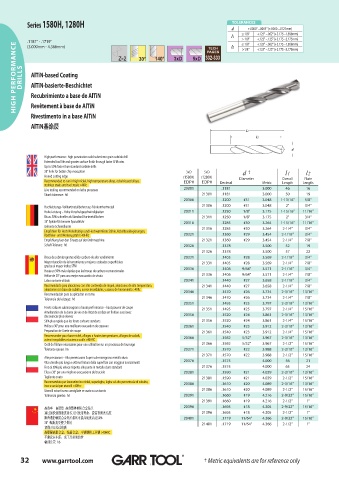

P. 32

Series 1580H, 1280H                                                     TOLERANCES
                                                                                  d     +.0000" –.0005" (+.0000 –.0127mm)
                                                                                      ≤ 1/8"  +.125" –.062" (+3.175 –1.588mm)
                                                                                  l1
           .1181" - .1719"                                    3xD    5xD 332-333  l2  > 1/8"  +.125" –.125" (+3.175 –3.175mm)
                                                                                           +.125" –.062" (+3.175 –1.588mm)
       HIGH PERFORMANCE  DRILLS  AlTiN-based Coating
                                                                                      ≤ 1/8"
           (3.000mm - 4.366mm)
                                                                                      >1/8"
                                                                                           +.125" –.125" (+3.175 –3.175mm)

            AlTiN-basierte-Beschichtet
            Recubrimiento a base de AlTiN
            Revêtement à base de AlTiN
            Rivestimento in a base AlTiN

            AlTiN基涂层
                  涂层
                基



                 High performance - high penetration solid submicron grain carbide drill
                 Extended tool life and greater surface finish through faster SFM rates
                 Up to 50% faster than standard carbide drills
                 30° helix for better chip evacuation             3xD    5xD          d  †           l1     l2
                 Honed cutting edge                              (1580H)  (1280H)
                                                                                                            Flute
                 Recommended to run in high nickel, high temperature alloys, cobalt-based alloys,  EDP#  EDP#  Decimal  Diameter  Metric  Overall  Length
                                                                                                    Length
                 stainless steels and tool steels >40Rc
                 Live tooling recommended on lathe processes      20301        .1181         3.000   46      16
                 Shank tolerance:  h6                                   21301  .1181         3.000   50      19
                                                                  20306        .1200   #31   3.048  1-13/16"  5/8"
                 Hochleistungs- Vollhartmetallbohrer aus Feinkornhartmetall     21306  .1200  #31  3.048  2"  3/4"
                 Hohe Leistung – Hohe Vorschubgeschwindigkeiten   20311        .1250  1/8"   3.175  1-15/16"  11/16"
                 Bis zu 50% schneller als Standard Hartmetallbohrer     21311  .1250  1/8"   3.175   2"     3/4"
                 30° Spirale für bessere Spanabfuhr               20316        .1285   #30   3.264  1-15/16"  11/16"
                 Gehonte Schneidkante                                   21316  .1285   #30   3.264  2-1/4"  3/4"
                 Empfohlen für Hoch Nickelhaltige und Hochwarmfeste Stähle, Kobaltbasislegierungen,
                 Rostfreier- und Werkzeugstahl >40HRc             20321        .1360   #29   3.454  2-1/16"  3/4"
                 Empfehlung fuer den Einsatz auf der Drehmaschine       21321  .1360   #29   3.454  2-1/4"  7/8"
                 Schaft-Toleranz:  h6                             20326        .1378         3.500   52      19
                                                                        21326  .1378         3.500   57      22
                 Broca de submicrograno sólido carburo de alto rendimiento  20331  .1405  #28  3.569  2-1/16"  3/4"
                 Mayor duración de la herramienta y mejores acabados superficiales  21331  .1405  #28  3.569  2-1/4"  7/8"
                 gracias al mayor índice SFM
                 Hasta un 50% más rápidas que las brocas de carburo convencionales  20336  .1406  9/64"  3.571  2-1/16"  3/4"
                 Hélice de 30° para una mejor evacuación de viruta      21336  .1406  9/64"  3.571  2-1/4"  7/8"
                 Labio cortante afilado                           20341        .1440   #27   3.658  2-1/16"  3/4"
                 Recomendado para aleaciones con alto contenido de níquel, aleaciones de alta temperatura,  21341  .1440  #27  3.658  2-1/4"  7/8"
                 aleaciones con base de cobalto, aceros inoxidables, y aceros de herramienta >40Rc  20346  .1470  #26  3.734  2-3/16"  13/16"
                 Recomendación para la aplicación en torno
                 Tolerancia del vástago:  h6                            21346  .1470   #26   3.734  2-1/4"  7/8"
                                                                  20351        .1495   #25   3.797  2-3/16"  13/16"
                 Forets carbure submicrograin a haute performance – haut pouvoir de coupe  21351  .1495  #25  3.797  2-1/4"  15/16"
                 Amelioration de la duree de vie et de l’etat de surface en finition aussi avec
                 des avances plus elevees                         20356        .1520   #24   3.861  2-3/16"  13/16"
                 50% plus rapide que les forets carbure standarts       21356  .1520   #24   3.861  2-1/4"  15/16"
                 Helice a 30° pour une meilleure evacuation de copeaux  20361  .1540   #23   3.912  2-3/16"  13/16"
                 Preparation de l’arete de coupe                        21361  .1540   #23   3.912  2-1/4"  15/16"
                 Recommander pour base nickel, alliages a hautes temperatures, alliages de cobalt,  20366  .1562  5/32"  3.967  2-3/16"  13/16"
                 aciers inoxydables et aciers a outils >40HRC
                 Outil de filature nécessaires pour une utilisation sur un processus de tournage  21366  .1562  5/32"  3.967  2-1/2"  15/16"
                 Tolerance queue:  h6                             20371        .1570   #22   3.988  2-3/16"  13/16"
                                                                        21371  .1570   #22   3.988  2-1/2"  15/16"
                 Alte prestazioni – Alta penetrazioni Super sub-micrograno metallo duro
                 Vita utensile più lunga e ottima finitura della superficie con maggiori avanzamenti   20376  .1575  4.000  56  21
                 Fino al 50% più veloce rispetto alle punte in metallo duro standard  21376  .1575  4.000  65  24
                 Elica a 30° per una migliore evacuazione del truciolo  20381  .1590   #21   4.039  2-3/16"  13/16"
                 Tagliente onato                                        21381  .1590   #21   4.039  2-1/2"  15/16"
                 Raccomandata per lavorazioni su nickel, superleghe, leghe ad alta percentuale di cobalto,  20386  .1610  #20  4.089  2-3/16"  13/16"
                 inox e acciai per utensili >40Hrc
                 Utensili rotanti sono consigliate se usato su un tornio  21386  .1610  #20  4.089  2-1/2"  15/16"
                 Tolleranza gambo:  h6                            20391        .1660   #19   4.216  2-9/32"  15/16"
                                                                        21391  .1660   #19   4.216  2-1/2"   1"
                 高效率—高进给 高效整体硬质合金钻头                               20396        .1695   #18   4.305  2-9/32"  15/16"
                 通过加快切削速度延长刀具使用寿命、提高表面光洁度                               21396  .1695   #18   4.305  2-1/2"   1"
                 跟普通的硬质合金钻头相比可提高速度高达50%                           20401        .1719  11/64"  4.366  2-9/32"  15/16"
                 30° 螺旋角更便于排屑                                           21401  .1719  11/64"  4.366  2-1/2"  1"
                 切削刃口经过珩磨
                 高镍耐高温合金、钴基合金、不锈钢和工具钢 >40HRC
                 不建议在车床,或工具必须纺纱
                 柄部公差:  h6


        32      www.garrtool.com                                 ® ® ®   †  Metric equivalents are for reference only
