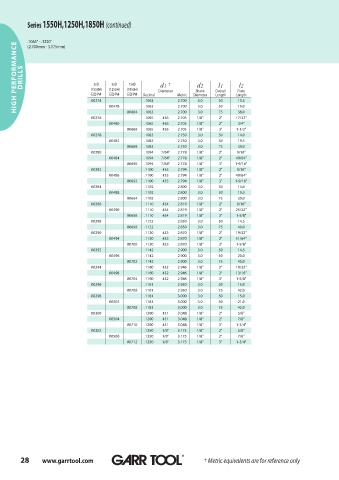

Page 28 - GARR_TOOL(CATALOG_INT)

Series 1550H,1250H,1850H (continued)

.1063" - .1250"
HIGH PERFORMANCE DRILLS (1550H) (1250H) (1850H) Decimal Diameter Metric Diameter Overall Length
(2.700mm - 3.175mm)

d1
5xD
12xD
3xD
†
l1
l2
d2
Shank
Flute
EDP#
EDP#
EDP#
Length
00274
3.0
13.5
.1063
2.700
19.0
50
3.0
38.0
75
.1063
2.700
3.0
2.705
00276 00478 00684 .1063 #36 2.700 1/8" 50 17/32"
.1065
2"
00480 .1065 #36 2.705 1/8" 2" 3/4"
00686 .1065 #36 2.705 1/8" 3" 1-1/2"
00278 .1083 2.750 3.0 50 14.0
00482 .1083 2.750 3.0 50 19.5
00688 .1083 2.750 3.0 75 39.0
00280 .1094 7/64" 2.778 1/8" 2" 9/16"
00484 .1094 7/64" 2.778 1/8" 2" 49/64"
00690 .1094 7/64" 2.778 1/8" 3" 1-9/16"
00282 .1100 #35 2.794 1/8" 2" 9/16"
00486 .1100 #35 2.794 1/8" 2" 49/64"
00692 .1100 #35 2.794 1/8" 3" 1-9/16"
00284 .1102 2.800 3.0 50 14.0
00488 .1102 2.800 3.0 50 19.5
00694 .1102 2.800 3.0 75 39.0
00286 .1110 #34 2.819 1/8" 2" 9/16"
00490 .1110 #34 2.819 1/8" 2" 25/32"
00696 .1110 #34 2.819 1/8" 3" 1-5/8"
00288 .1122 2.850 3.0 50 14.5
00698 .1122 2.850 3.0 75 40.0
00290 .1130 #33 2.870 1/8" 2" 19/32"
00494 .1130 #33 2.870 1/8" 2" 51/64"
00700 .1130 #33 2.870 1/8" 3" 1-5/8"
00292 .1142 2.900 3.0 50 14.5
00496 .1142 2.900 3.0 50 20.0
00702 .1142 2.900 3.0 75 40.0
00294 .1160 #32 2.946 1/8" 2" 19/32"
00498 .1160 #32 2.946 1/8" 2" 13/16"
00704 .1160 #32 2.946 1/8" 3" 1-5/8"
00296 .1161 2.950 3.0 50 15.0
00706 .1161 2.950 3.0 75 42.0
00298 .1181 3.000 3.0 50 15.0
00502 .1181 3.000 3.0 50 21.0
00708 .1181 3.000 3.0 75 42.0
00300 .1200 #31 3.048 1/8" 2" 5/8"
00504 .1200 #31 3.048 1/8" 2" 7/8"
00710 .1200 #31 3.048 1/8" 3" 1-3/4"
00302 .1250 1/8" 3.175 1/8" 2" 5/8"
00506 .1250 1/8" 3.175 1/8" 2" 7/8"
00712 .1250 1/8" 3.175 1/8" 3" 1-3/4"

28 www.garrtool.com ® ® ® † Metric equivalents are for reference only
