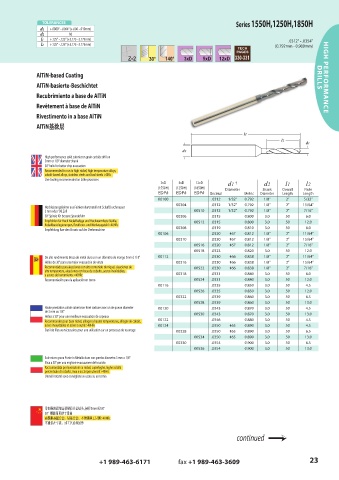

P. 23
TOLERANCES Series 1550H,1250H,1850H
d1 +.0000" –.0004" (+.000 –.010mm)
d2 h6
l1 +.125" –.125" (+3.175 –3.175mm) .0312" - .0354"
l2 +.125" –.125" (+3.175 –3.175mm) (0.792mm - 0.900mm)
3xD 5xD 12xD 330-331
AlTiN-based Coating DRILLS HIGH PERFORMANCE
AlTiN-basierte-Beschichtet
Recubrimiento a base de AlTiN
Revêtement à base de AlTiN
Rivestimento in a base AlTiN
基
AlTiN基涂层
涂层
High performance solid submicron grain carbide drill on
3mm or 1/8" diameter shank
30° helix for better chip evacuation
Recommended to run in high nickel, high temperature alloys,
cobalt-based alloys, stainless steels and tool steels >40Rc
Live tooling recommended on lathe processes
3xD 5xD 12xD d1 † d2 l1 l2
(1550H) (1250H) (1850H) Diameter Shank Overall Flute
EDP# EDP# EDP# Decimal Metric Diameter Length Length
00100 .0312 1/32" 0.792 1/8" 2" 5/32"
00304 .0312 1/32" 0.792 1/8" 2" 15/64"
HochleistungsBohrer aus Feinkornhartmetall mit SchaftDurchmesser
3 mm oder 1/8 Zoll 00510 .0312 1/32" 0.792 1/8" 2" 7/16"
30° Spirale für bessere Spanabfuhr 00306 .0315 0.800 3.0 50 6.0
Empfohlen für Hoch Nickelhaltige und Hochwarmfeste Stähle, 00512 .0315 0.800 3.0 50 12.0
Kobaltbasislegierungen, Rostfreier- und Werkzeugstahl >40HRc
Empfehlung fuer den Einsatz auf der Drehmaschine 00308 .0319 0.810 3.0 50 6.0
00106 .0320 #67 0.812 1/8" 2" 11/64"
00310 .0320 #67 0.812 1/8" 2" 15/64"
00516 .0320 #67 0.812 1/8" 2" 7/16"
00518 .0323 0.820 3.0 50 12.0
De alto rendimiento Broca de metal duro con un diámetro de mango 3mm ó 1/ 8” 00112 .0330 #66 0.838 1/8" 2" 11/64"
Hélice de 30° para una mejor evacuación de viruta 00316 .0330 #66 0.838 1/8" 2" 15/64"
Recomendado para aleaciones con alto contenido de níquel, aleaciones de 00522 .0330 #66 0.838 1/8" 2" 7/16"
alta temperatura, aleaciones con base de cobalto, aceros inoxidables,
y aceros de herramienta >40HRc 00318 .0331 0.840 3.0 50 6.0
Recomendación para la aplicación en torno 00524 .0331 0.840 3.0 50 12.0
00116 .0335 0.850 3.0 50 4.5
00526 .0335 0.850 3.0 50 12.0
00322 .0339 0.860 3.0 50 6.5
00528 .0339 0.860 3.0 50 13.0
Haute prestation solide submicron foret carbure avec un de queue diameter 00120 .0343 0.870 3.0 50 4.5
de 3 mm ou 1/8’’
Helice a 30° pour une meilleure evacuation de copeaux 00530 .0343 0.870 3.0 50 13.0
Recommander pour base nickel, alliages a hautes temperatures, alliages de cobalt, 00122 .0346 0.880 3.0 50 4.5
aciers inoxydables et aciers a outils >40HRc 00124 .0350 #65 0.890 3.0 50 4.5
Outil de filature nécessaires pour une utilisation sur un processus de tournage 00328 .0350 #65 0.890 3.0 50 6.5
00534 .0350 #65 0.890 3.0 50 13.0
00330 .0354 0.900 3.0 50 6.5
00536 .0354 0.900 3.0 50 13.0
Sub-micro grana Punte in Metallo duro con gambo diametro 3 mm o 1/8”
Elica a 30° per una migliore evacuazione del truciolo
Raccomandata per lavorazioni su nickel, superleghe, leghe ad alta
percentuale di cobalto, inox e acciai per utensili >40Hrc
Utensili rotanti sono consigliate se usato su un tornio
带加强的超细高效硬质合金钻头,柄径3mm或1/8”
30° 螺旋角更便于排屑
高镍耐高温合金、钴基合金、不锈钢和工具钢 >40HRc
不建议在车床,或工具必须纺纱
continued ?
