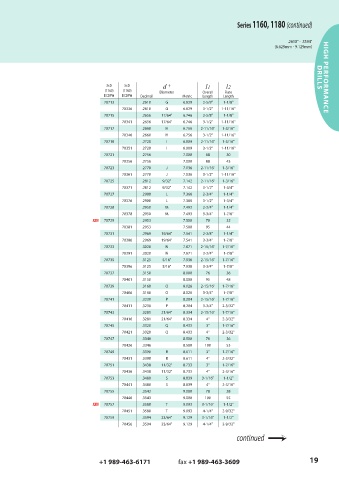

Page 19 - GARR_TOOL(CATALOG_INT)

Series 1160, 1180 (continued)

.2610" - .3594"
(6.629mm - 9.129mm)

3xD 5xD d † l1 l2 DRILLS HIGH PERFORMANCE
(1160) (1180) Diameter Overall Flute
EDP# EDP# Decimal Metric Length Length
70713 .2610 G 6.629 2-5/8" 1-1/8"
70336 .2610 G 6.629 3-1/2" 1-11/16"
70715 .2656 17/64" 6.746 2-5/8" 1-1/8"
70341 .2656 17/64" 6.746 3-1/2" 1-11/16"
70717 .2660 H 6.756 2-11/16" 1-3/16"
70346 .2660 H 6.756 3-1/2" 1-11/16"
70719 .2720 I 6.909 2-11/16" 1-3/16"
70351 .2720 I 6.909 3-1/2" 1-11/16"
70721 .2756 7.000 68 30
70356 .2756 7.000 88 43
70723 .2770 J 7.036 2-11/16" 1-3/16"
70361 .2770 J 7.036 3-1/2" 1-11/16"
70725 .2812 9/32" 7.142 2-11/16" 1-3/16"
70371 .2812 9/32" 7.142 3-1/2" 1-3/4"
70727 .2900 L 7.366 2-3/4" 1-1/4"
70376 .2900 L 7.366 3-1/2" 1-3/4"
70728 .2950 M 7.493 2-3/4" 1-1/4"
70378 .2950 M 7.493 3-3/4" 1-7/8"
NEW 70729 .2953 7.500 70 32
70381 .2953 7.500 95 44
70731 .2969 19/64" 7.541 2-3/4" 1-1/4"
70386 .2969 19/64" 7.541 3-3/4" 1-7/8"
70733 .3020 N 7.671 2-15/16" 1-7/16"
70391 .3020 N 7.671 3-3/4" 1-7/8"
70735 .3125 5/16" 7.938 2-15/16" 1-7/16"
70396 .3125 5/16" 7.938 3-3/4" 1-7/8"
70737 .3150 8.000 76 36
70401 .3150 8.000 95 48
70739 .3160 O 8.026 2-15/16" 1-7/16"
70406 .3160 O 8.026 3-3/4" 1-7/8"
70741 .3230 P 8.204 2-15/16" 1-7/16"
70411 .3230 P 8.204 3-3/4" 2-3/32"
70743 .3281 21/64" 8.334 2-15/16" 1-7/16"
70416 .3281 21/64" 8.334 4" 2-3/32"
70745 .3320 Q 8.433 3" 1-7/16"
70421 .3320 Q 8.433 4" 2-3/32"
70747 .3346 8.500 76 36
70426 .3346 8.500 100 53
70749 .3390 R 8.611 3" 1-7/16"
70431 .3390 R 8.611 4" 2-3/32"
70751 .3438 11/32" 8.733 3" 1-7/16"
70436 .3438 11/32" 8.733 4" 2-3/16"
70753 .3480 S 8.839 3-1/16" 1-1/2"
70441 .3480 S 8.839 4" 2-3/16"
70755 .3543 9.000 78 38
70446 .3543 9.000 100 55
NEW 70757 .3580 T 9.093 3-1/16" 1-1/2"
70451 .3580 T 9.093 4-1/4" 2-9/32"
70759 .3594 23/64" 9.129 3-1/16" 1-1/2"
70456 .3594 23/64" 9.129 4-1/4" 2-9/32"

continued ?
