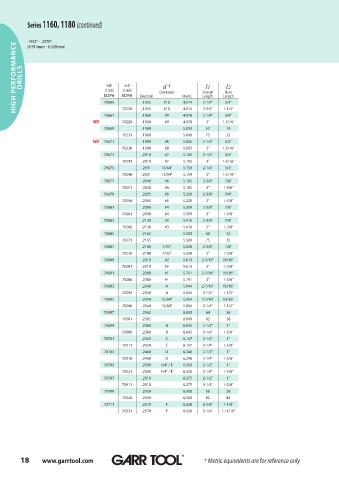

Page 18 - GARR_TOOL(CATALOG_INT)

Series 1160, 1180 (continued)

.1935" - .2570"
HIGH PERFORMANCE DRILLS EDP# EDP# Decimal Diameter Metric Overall Length
(4.914mm - 6.528mm)

d
5xD
†
3xD
l2
l1
(1180)
(1160)
Flute
Length
70665
3/4"
4.914
.1935
#10
2-3/4"
3/4"
.1960
70667 70226 .1935 #10 4.914 2-1/4" 1-1/4"
2-1/4"
4.978
#9
NEW 70229 .1960 #9 4.978 3" 1-5/16"
70669 .1969 5.000 57 19
70231 .1969 5.000 75 32
NEW 70671 .1990 #8 5.055 2-1/4" 3/4"
70236 .1990 #8 5.055 3" 1-5/16"
70673 .2010 #7 5.105 2-1/4" 3/4"
70241 .2010 #7 5.105 3" 1-5/16"
70675 .2031 13/64" 5.159 2-1/4" 3/4"
70246 .2031 13/64" 5.159 3" 1-5/16"
70677 .2040 #6 5.182 2-3/8" 7/8"
70251 .2040 #6 5.182 3" 1-3/8"
70679 .2055 #5 5.220 2-3/8" 7/8"
70256 .2055 #5 5.220 3" 1-3/8"
70681 .2090 #4 5.309 2-3/8" 7/8"
70261 .2090 #4 5.309 3" 1-3/8"
70683 .2130 #3 5.410 2-3/8" 7/8"
70266 .2130 #3 5.410 3" 1-3/8"
70685 .2165 5.500 60 22
70271 .2165 5.500 75 35
70687 .2188 7/32" 5.558 2-3/8" 7/8"
70276 .2188 7/32" 5.558 3" 1-3/8"
70689 .2210 #2 5.613 2-7/16" 15/16"
70281 .2210 #2 5.613 3" 1-3/8"
70691 .2280 #1 5.791 2-7/16" 15/16"
70286 .2280 #1 5.791 3" 1-3/8"
70693 .2340 A 5.944 2-7/16" 15/16"
70294 .2340 A 5.944 3-1/4" 1-1/2"
70695 .2344 15/64" 5.954 2-7/16" 15/16"
70296 .2344 15/64" 5.954 3-1/4" 1-1/2"
70697 .2362 6.000 64 26
70301 .2362 6.000 82 38
70699 .2380 B 6.045 2-1/2" 1"
70306 .2380 B 6.045 3-1/4" 1-5/8"
70701 .2420 C 6.147 2-1/2" 1"
70311 .2420 C 6.147 3-1/4" 1-5/8"
70703 .2460 D 6.248 2-1/2" 1"
70316 .2460 D 6.248 3-1/4" 1-5/8"
70705 .2500 1/4" / E 6.350 2-1/2" 1"
70321 .2500 1/4" / E 6.350 3-1/4" 1-5/8"
70707 .2510 6.375 2-1/2" 1"
70911 .2510 6.375 3-1/4" 1-5/8"
70709 .2559 6.500 66 28
70326 .2559 6.500 82 41
70711 .2570 F 6.528 2-5/8" 1-1/8"
70331 .2570 F 6.528 3-1/4" 1-11/16"

18 www.garrtool.com ® ® ® † Metric equivalents are for reference only
