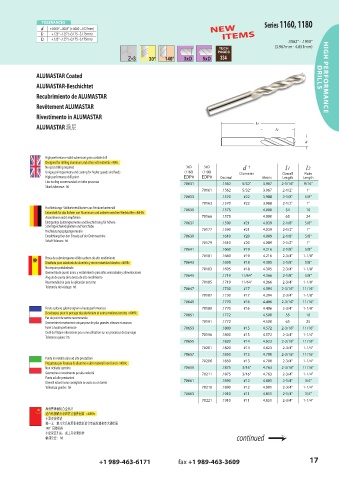

P. 17

TOLERANCES                                                                    Series 1160, 1180
                                                                           NEW
                d  +.0000" –.0005" (+.0000 –.0127mm)                       NEW
                                                                               ITEMS
               l1  +.125" –.125" (+3.175 –3.175mm)                             ITEMS
               l2  +.125" –.125" (+3.175 –3.175mm)
                                                                                                      .1562" - .1910"
                                                                                                  (3.967mm - 4.851mm)
                                                                  3xD   5xD   334


              ALUMASTAR Coated                                                                                   DRILLS  HIGH PERFORMANCE
              ALUMASTAR-Beschichtet
              Recubrimiento de ALUMASTAR
              Revêtement ALUMASTAR

              Rivestimento in ALUMASTAR
              ALUMASTAR 涂层
                        涂层




                 High performance solid submicron grain carbide drill
                 Designed for drilling aluminum and other soft materials <40Rc
                 No spot drilling required                        3xD    5xD          d  †           l1     l2
                 Unique point geometry and coating for higher speeds and feeds  (1160)  (1180)  Diameter  Overall  Flute
                 High performance drill point                     EDP#  EDP#  Decimal        Metric  Length  Length
                 Live tooling recommended on lathe processes      70631        .1562  5/32"  3.967  2-1/16"  9/16"
                 Shank tolerance:  h6
                                                                        70161  .1562  5/32"  3.967  2-1/2"   1"
                                                                  70633        .1570   #22   3.988  2-1/8"  5/8"
                                                                        70163  .1570   #22   3.988  2-1/2"   1"
                 Hochleistungs- Vollhartmetallbohrer aus Feinkornhartmetall  70635  .1575    4.000   54      16
                 Entwickelt für das Bohren von Aluminium und anderen weichen Werkstoffen <40HRc
                 Anzentrieren nicht empfohlen                           70166  .1575         4.000   65      24
                 Einzigartige Spitzengeometrie und Beschichtung für höhere  70637  .1590  #21  4.039  2-1/8"  5/8"
                 Schnittgeschwindigkeiten und Vorschübe
                 Hochleistungsspitzengeometrie                          70177  .1590   #21   4.039  2-1/2"   1"
                 Empfehlung fuer den Einsatz auf der Drehmaschine  70639       .1610   #20   4.089  2-1/8"  5/8"
                 Schaft-Toleranz:  h6
                                                                        70179  .1610   #20   4.089  2-1/2"   1"
                                                                  70641        .1660   #19   4.216  2-1/8"  5/8"
                                                                        70181  .1660   #19   4.216  2-3/4"  1-1/8"
                 Broca de submicrograno sólido carburo de alto rendimiento
                 Diseñada para taladrado de aluminio y otros materiales blandos <40HRc  70643  .1695  #18  4.305  2-1/8"  5/8"
                 No require pretaladrado                                70183  .1695   #18   4.305  2-3/4"  1-1/8"
                 Geometría de punto único y recibrimiento para altas velocidades y alimentaciones
                 Ángulo de punta de la broca de alto rendimiento  70645        .1719  11/64"  4.366  2-1/8"  5/8"
                 Recomendación para la aplicación en torno              70185  .1719  11/64"  4.366  2-3/4"  1-1/8"
                 Tolerancia del vástago:  h6                      70647        .1730   #17   4.394  2-3/16"  11/16"
                                                                        70187  .1730   #17   4.394  2-3/4"  1-1/8"
                                                                  70649        .1770   #16   4.496  2-3/16"  11/16"
                 Forets carbure submicrograin a haute performances      70189  .1770   #16   4.496  2-3/4"  1-1/8"
                 Developpes pour le percage des aluminium et autres matieres tendres <40HRc  70651  .1772  4.500  55  18
                 Pas de point de centre recommande
                 Geometrie et revetement unique pour de plus grandes vitesses et avances  70191  .1772  4.500  65  25
                 Foret a haute performance                        70653        .1800   #15   4.572  2-3/16"  11/16"
                 Outil de filature nécessaires pour une utilisation sur un processus de tournage  70196  .1800  #15  4.572  2-3/4"  1-1/4"
                 Tolerance queue:  h6
                                                                  70655        .1820   #14   4.623  2-3/16"  11/16"
                                                                        70201  .1820   #14   4.623  2-3/4"  1-1/4"
                                                                  70657        .1850   #13   4.700  2-3/16"  11/16"
                 Punta in metallo duro ad alte prestazioni
                 Progettata per foratura di alluminio e altri materiali non ferrosi <40Hrc  70206  .1850  #13  4.700  2-3/4"  1-1/4"
                 Non richiede centrino                            70659        .1875  3/16"  4.763  2-3/16"  11/16"
                 Geometria e rivestimento per alta velocità             70211  .1875  3/16"  4.763  2-3/4"  1-1/4"
                 Punta ad alte prestazioni
                 Utensili rotanti sono consigliate se usato su un tornio  70661  .1890  #12  4.801  2-1/4"  3/4"
                 Tolleranza gambo:  h6                                  70216  .1890   #12   4.801  2-3/4"  1-1/4"
                                                                  70663        .1910   #11   4.851  2-1/4"  3/4"
                                                                        70221  .1910   #11   4.851  2-3/4"  1-1/4"
                 高效整体硬质合金钻头
                 适合钻削铝合金和其它软性材质 <40HRc
                 不需要定位钻
                 独一无二的刀尖几何形状和涂层适合更高转速和更大进给量
                 140° 高效钻尖
                 不建议在车床,或工具必须纺纱
                 柄部公差:  h6                                                          continued              ?


                                    +1 989-463-6171                    fax +1 989-463-3609                    17
