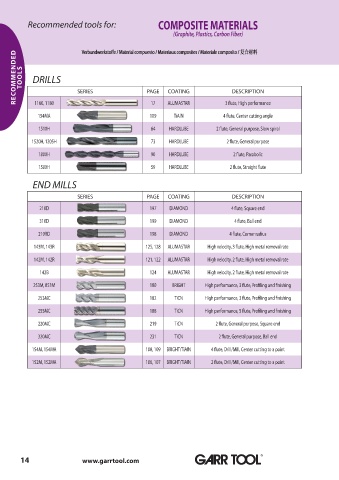

Page 14 - GARR_TOOL(CATALOG_INT)

Recommended tools for: COMPOSITE MATERIALS
(Graphite, Plastics, Carbon Fiber)

er
t
o / M
ompuest
ial c
a
er
bundw
er
e / M
off
kst
er
t
a
o /
omposit
iale c
er
t
a
es / M
omposit
iaux c
V
复合材料
Verbundwerkstoffe / Material compuesto / Materiaux composites / Materiale composito / 复合材料
RECOMMENDED TOOLS DRILLS SERIES PAGE COATING DESCRIPTION
17
3 flute, High performance
1160, 1180
154MA 109 ALUMASTAR 4 flute, Center cutting angle
TiAlN
1510H 64 HARDLUBE 2 flute, General purpose, Slow spiral
1520H, 1205H 73 HARDLUBE 2 flute, General purpose
1800H 90 HARDLUBE 2 flute, Parabolic
1500H 59 HARDLUBE 2 flute, Straight flute
END MILLS
SERIES PAGE COATING DESCRIPTION
210D 197 DIAMOND 4 flute, Square end
310D 199 DIAMOND 4 flute, Ball end
210RD 198 DIAMOND 4 flute, Corner radius
143M, 143R 125, 128 ALUMASTAR High velocity, 3 flute, High metal removal rate

142M, 142R 121, 122 ALUMASTAR High velocity, 2 flute, High metal removal rate

142B 124 ALUMASTAR High velocity, 2 flute, High metal removal rate

253M, 853M 180 BRIGHT High performance, 3 flute, Profiling and finishing
253MC 182 TiCN High performance, 3 flute, Profiling and finishing

255MC 188 TiCN High performance, 5 flute, Profiling and finishing

220MC 219 TiCN 2 flute, General purpose, Square end

320MC 231 TiCN 2 flute, General purpose, Ball end

154M, 154MA 108, 109 BRIGHT/TiAlN 4 flute, Drill/Mill, Center cutting to a point

152M, 152MA 106, 107 BRIGHT/TiAlN 2 flute, Drill/Mill, Center cutting to a point

14 www.garrtool.com ®
