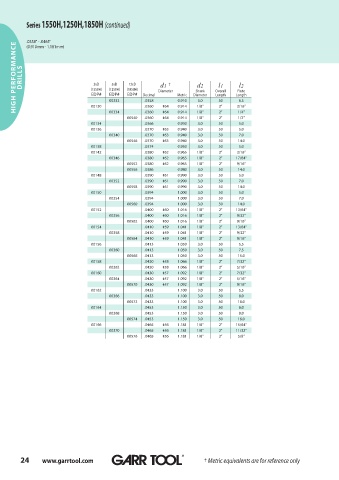

Page 24 - GARR_TOOL(CATALOG_INT)

Series 1550H,1250H,1850H (continued)

.0358" - .0465"
HIGH PERFORMANCE DRILLS (1550H) (1250H) (1850H) Decimal Diameter Metric Diameter Overall Length
(0.910mm - 1.181mm)

d1
†
12xD
3xD
5xD
l1
l2
d2
Flute
Shank
EDP#
EDP#
EDP#
Length
3.0
00332
6.5
2"
00130
0.914
.0360
#64
0.914
.0360
1/8"
2"
00334
1/4"
.0360
0.914
#64
00540 .0358 #64 0.910 1/8" 50 3/16"
1/2"
2"
1/8"
00134 .0366 0.930 3.0 50 5.0
00136 .0370 #63 0.940 3.0 50 5.0
00340 .0370 #63 0.940 3.0 50 7.0
00546 .0370 #63 0.940 3.0 50 14.0
00138 .0374 0.950 3.0 50 5.0
00142 .0380 #62 0.965 1/8" 2" 3/16"
00346 .0380 #62 0.965 1/8" 2" 17/64"
00552 .0380 #62 0.965 1/8" 2" 9/16"
00556 .0386 0.980 3.0 50 14.0
00148 .0390 #61 0.990 3.0 50 5.0
00352 .0390 #61 0.990 3.0 50 7.0
00558 .0390 #61 0.990 3.0 50 14.0
00150 .0394 1.000 3.0 50 5.0
00354 .0394 1.000 3.0 50 7.0
00560 .0394 1.000 3.0 50 14.0
00152 .0400 #60 1.016 1/8" 2" 13/64"
00356 .0400 #60 1.016 1/8" 2" 9/32"
00562 .0400 #60 1.016 1/8" 2" 9/16"
00154 .0410 #59 1.041 1/8" 2" 13/64"
00358 .0410 #59 1.041 1/8" 2" 9/32"
00564 .0410 #59 1.041 1/8" 2" 9/16"
00156 .0413 1.050 3.0 50 5.5
00360 .0413 1.050 3.0 50 7.5
00566 .0413 1.050 3.0 50 15.0
00158 .0420 #58 1.066 1/8" 2" 7/32"
00362 .0420 #58 1.066 1/8" 2" 5/16"
00160 .0430 #57 1.092 1/8" 2" 7/32"
00364 .0430 #57 1.092 1/8" 2" 5/16"
00570 .0430 #57 1.092 1/8" 2" 9/16"
00162 .0433 1.100 3.0 50 5.5
00366 .0433 1.100 3.0 50 8.0
00572 .0433 1.100 3.0 50 16.0
00164 .0453 1.150 3.0 50 6.0
00368 .0453 1.150 3.0 50 8.0
00574 .0453 1.150 3.0 50 16.0
00166 .0465 #56 1.181 1/8" 2" 15/64"
00370 .0465 #56 1.181 1/8" 2" 11/32"
00576 .0465 #56 1.181 1/8" 2" 5/8"

24 www.garrtool.com ® ® ® † Metric equivalents are for reference only
