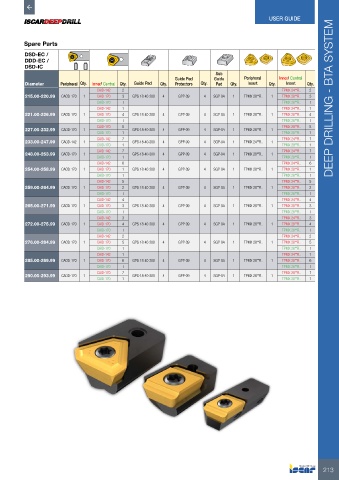

Page 215 - ISCAR(HOLE_MAKING_CATALOG_65)

USER GUIDE

Spare Parts
DSD-EC /
DDD-EC /
DSD-IC
Sub
Guide Pad Guide Peripheral Inner/ Central
Diameter Peripheral Qty. Inner/ Central Qty. Guide Pad Qty. Protectors Qty. Pad Qty. Insert Qty. Insert Qty.
CAID-142 2 TPMX 24**R.. 2
215.00-220.99 CAOD-170 1 CAID-170 3 GPS-18-40-300 4 GPP-09 4 SGP-04 1 TPMX 28**R.. 1 TPMX 28**R.. 3 DEEP DRILLING - BTA SYSTEM
CAID-170 1 TPMX 28**R.. 1
CAID-142 1 TPMX 24**R.. 1
221.00-226.99 CAOD-170 1 CAID-170 4 GPS-18-40-300 4 GPP-09 4 SGP-04 1 TPMX 28**R.. 1 TPMX 28**R.. 4
CAID-170 1 TPMX 28**R.. 1
CAID-170 5 TPMX 28**R.. 5
227.00-232.99 CAOD-170 1 GPS-18-40-300 4 GPP-09 4 SGP-04 1 TPMX 28**R.. 1
CAID-170 1 TPMX 28**R.. 1
CAID-142 7 TPMX 24**R.. 7
233.00-247.99 CAOD-142 1 GPS-18-40-300 4 GPP-09 4 SGP-04 1 TPMX 24**R.. 1
CAID-170 1 TPMX 28**R.. 1
CAID-142 7 TPMX 24**R.. 7
248.00-253.99 CAOD-170 1 GPS-18-40-300 4 GPP-09 4 SGP-04 1 TPMX 28**R.. 1
CAID-170 1 TPMX 28**R.. 1
CAID-142 6 TPMX 24**R.. 6
254.00-258.99 CAOD-170 1 CAID-170 1 GPS-18-40-300 4 GPP-09 4 SGP-04 1 TPMX 28**R.. 1 TPMX 28**R.. 1
CAID-170 1 TPMX 28**R.. 1
CAID-142 5 TPMX 24**R.. 5
259.00-264.99 CAOD-170 1 CAID-170 2 GPS-18-40-300 4 GPP-09 4 SGP-04 1 TPMX 28**R.. 1 TPMX 28**R.. 2
CAID-170 1 TPMX 28**R.. 1
CAID-142 4 TPMX 24**R.. 4
265.00-271.99 CAOD-170 1 CAID-170 3 GPS-18-40-300 4 GPP-09 4 SGP-04 1 TPMX 28**R.. 1 TPMX 28**R.. 3
CAID-170 1 TPMX 28**R.. 1
CAID-142 3 TPMX 24**R.. 3
272.00-275.99 CAOD-170 1 CAID-170 4 GPS-18-40-300 4 GPP-09 4 SGP-04 1 TPMX 28**R.. 1 TPMX 28**R.. 4
CAID-170 1 TPMX 28**R.. 1
CAID-142 2 TPMX 24**R.. 2
276.00-284.99 CAOD-170 1 CAID-170 5 GPS-18-40-300 4 GPP-09 4 SGP-04 1 TPMX 28**R.. 1 TPMX 28**R.. 5
CAID-170 1 TPMX 28**R.. 1
CAID-142 1 TPMX 24**R.. 1
285.00-289.99 CAOD-170 1 CAID-170 6 GPS-18-40-300 4 GPP-09 4 SGP-04 1 TPMX 28**R.. 1 TPMX 28**R.. 6
CAID-170 1 TPMX 28**R.. 1
CAID-170 7 TPMX 28**R.. 7
290.00-293.99 CAOD-170 1 GPS-18-40-300 4 GPP-09 4 SGP-04 1 TPMX 28**R.. 1
CAID-170 1 TPMX 28**R.. 1

213
