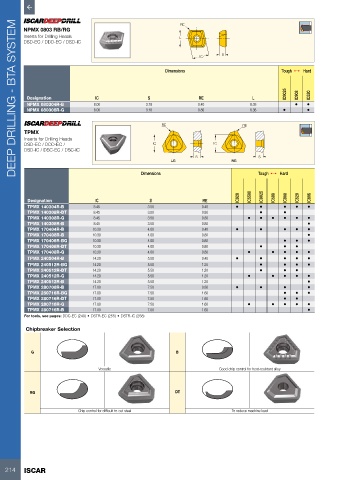

Page 216 - ISCAR(HOLE_MAKING_CATALOG_65)

DEEP DRILLING - BTA SYSTEM
RE

NPMX 0803 RB/RG
Inserts for Drilling Heads L
DSD-EC / DDD-EC / DSD-IC

IC S

Dimensions Tough 1 Hard

IC9025 IC908 IC520
Designation IC S RE L
NPMX 080304R-B 8.00 3.18 0.40 8.36 • •
NPMX 080308R-G 8.00 3.18 0.80 8.36 • •

RE RE

TPMX
Inserts for Drilling Heads
DSD-EC / DDD-EC / IC IC
DSD-IC / DSC-EC / DSC-IC
S S
LG RG
Dimensions Tough 1 Hard

IC920 IC5500 IC9025 IC508 IC908 IC520 IC806
Designation IC S RE
TPMX 140304R-B 8.45 3.50 0.40 • • • • •
TPMX 140308R-DT 8.45 3.50 0.80 • •
TPMX 140308R-G 8.45 3.50 0.80 • • • • • •
TPMX 140308R-B 8.45 3.50 0.80 •
TPMX 170404R-B 10.30 4.00 0.40 • • • • •
TPMX 170408R-B 10.30 4.00 0.80 •
TPMX 170408R-BG 10.30 4.00 0.80 • • •
TPMX 170408R-DT 10.30 4.00 0.80 • • •
TPMX 170408R-G 10.30 4.00 0.80 • • • • •
TPMX 240504R-B 14.20 5.50 0.40 • • • • •
TPMX 240512R-BG 14.20 5.50 1.20 • • • •
TPMX 240512R-DT 14.20 5.50 1.20 • • •
TPMX 240512R-G 14.20 5.50 1.20 • • • • •
TPMX 240512R-B 14.20 5.50 1.20 •
TPMX 280708R-B 17.00 7.50 0.80 • • • •
TPMX 280716R-BG 17.00 7.50 1.60 • • •
TPMX 280716R-DT 17.00 7.50 1.60 • •
TPMX 280716R-G 17.00 7.50 1.60 • • • • •
TPMX 280716R-B 17.00 7.50 1.60 •
For tools, see pages: DDC-EC (249) • DSTR-EC (255) • DSTR-IC (258)

Chipbreaker Selection

G B

Versatile Good chip control for heat-resistant alloy

BG DT

Chip control for difficult-to-cut steel To reduce machine load

214 ISCAR
