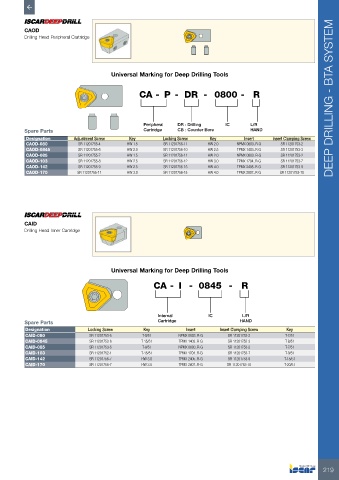

P. 221
CAOD
Drilling Head Peripheral Cartridge
Universal Marking for Deep Drilling Tools
CA - P - DR - 0800 - R DEEP DRILLING - BTA SYSTEM
Peripheral DR : Drilling IC L/R
Spare Parts Cartridge CB : Counter Bore HAND
Designation Adjustment Screw Key Locking Screw Key Insert Insert Clamping Screw
CAOD-080 SR 11201755-4 HW 1.5 SR 11201756-11 HW 2.0 NPMX 0803..R-G SR 11201753-2
CAOD-0845 SR 11201755-6 HW 2.0 SR 11201756-10 HW 2.5 TPMX 1403..R-G SR 11201753-3
CAOD-085 SR 11201755-7 HW 1.5 SR 11201756-11 HW 2.0 NPMX 0803..R-G SR 11201753-2
CAOD-103 SR 11201755-8 HW 2.5 SR 11201756-12 HW 3.0 TPMX 1704..R-G SR 11201753-7
CAOD-142 SR 11201755-9 HW 2.5 SR 11201756-15 HW 4.0 TPMX 2405..R-G SR 11201753-9
CAOD-170 SR 11201755-11 HW 3.0 SR 11201756-15 HW 4.0 TPMX 2807..R-G SR 11201753-10
CAID
Drilling Head Inner Cartridge
Universal Marking for Deep Drilling Tools
CA - I - 0845 - R
Internal IC L/R
Spare Parts Cartridge HAND
Designation Locking Screw Key Insert Insert Clamping Screw Key
CAID-080 SR 11201753-5 T-9/51 NPMX 0803..R-G SR 11201753-2 T-7/51
CAID-0845 SR 11201753-6 T-15/51 TPMX 1403..R-G SR 11201753-3 T-8/51
CAID-085 SR 11201753-5 T-9/51 NPMX 0803..R-G SR 11201753-2 T-7/51
CAID-103 SR 11201752-1 T-15/51 TPMX 1704..R-G SR 11201753-7 T-9/51
CAID-142 SR 11201756-7 HW 3.0 TPMX 2405..R-G SR 11201753-9 T-15/51
CAID-170 SR 11201756-7 HW 3.0 TPMX 2807..R-G SR 11201753-10 T-20/51
219
