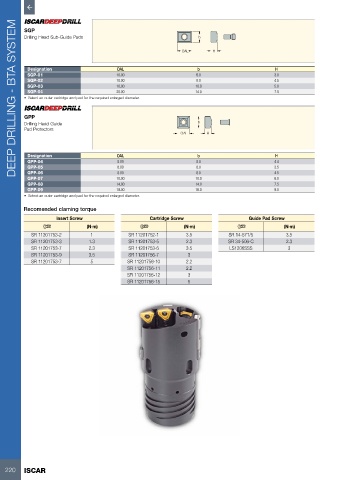

P. 222

DEEP DRILLING - BTA SYSTEM

          SGP
          Drilling Head Sub-Guide Pads                                 b

                                                                 OAL        H

           Designation                    OAL                         b                           H
           SGP-01                         10.00                       6.0                        3.0
           SGP-02                         10.00                       8.0                        4.5
           SGP-03                         10.00                       10.0                       5.0
           SGP-04                         20.00                       14.0                       7.0
          •  Select an outer cartridge and pad for the required enlarged diameter.


          GPP
          Drilling Head Guide                                         b
          Pad Protectors
                                                                OAL       H



           Designation                    OAL                         b                           H
           GPP-04                         8.00                        8.0                        4.4
           GPP-05                         8.00                        8.0                        3.5
           GPP-06                         8.00                        8.0                        4.5
           GPP-07                         10.00                       10.0                       6.0
           GPP-08                         14.00                       14.0                       7.5
           GPP-09                         18.00                       18.0                       9.0
          •  Select an outer cartridge and pad for the required enlarged diameter.


         Recomended claming torque
                     Insert Screw                     Cartridge Screw                   Guide Pad Screw
                               (N∙m)                              (N∙m)                              (N∙m)
            SR 11201753-2        1            SR 11201752-1       3.5            SR 14-571/5         3.5
            SR 11201753-3       1.3           SR 11201753-5       2.3            SR 34-506-C         2.3
            SR 11201753-7       2.3           SR 11201753-5       3.5             LS1206SSS           3
            SR 11201753-9       3.5           SR 11201756-7        3
            SR 11201753-7        5            SR 11201756-10      2.2
                                              SR 11201756-11      2.2
                                              SR 11201756-12       3
                                              SR 11201756-15       5







































   220    ISCAR
