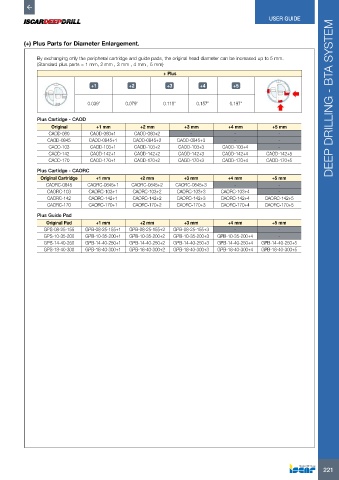

USER GUIDE

(+) Plus Parts for Diameter Enlargement.

By exchanging only the peripheral cartridge and guide pads, the original head diameter can be increased up to 5 mm.
(Standard plus parts = 1 mm, 2 mm , 3 mm , 4 mm , 5 mm)
+ Plus

+1 +2 +3 +4 +5

0.039” 0.079” 0.118” 0.157” 0.197” DEEP DRILLING - BTA SYSTEM

Plus Cartidge - CAOD
Original +1 mm +2 mm +3 mm +4 mm +5 mm
CAOD-080 CAOD-080+1 CAOD-080+2 - - -
CAOD-0845 CAOD-0845+1 CAOD-0845+2 CAOD-0845+3 - -
CAOD-103 CAOD-103+1 CAOD-103+2 CAOD-103+3 CAOD-103+4 -
CAOD-142 CAOD-142+1 CAOD-142+2 CAOD-142+3 CAOD-142+4 CAOD-142+5
CAOD-170 CAOD-170+1 CAOD-170+2 CAOD-170+3 CAOD-170+4 CAOD-170+5

Plus Cartidge - CAORC
Original Cartridge +1 mm +2 mm +3 mm +4 mm +5 mm
CAORC-0845 CAORC-0845+1 CAORC-0845+2 CAORC-0845+3 - -
CAORC-103 CAORC-103+1 CAORC-103+2 CAORC-103+3 CAORC-103+4 -
CAORC-142 CAORC-142+1 CAORC-142+2 CAORC-142+3 CAORC-142+4 CAORC-142+5
CAORC-170 CAORC-170+1 CAORC-170+2 CAORC-170+3 CAORC-170+4 CAORC-170+5
Plus Guide Pad
Original Pad +1 mm +2 mm +3 mm +4 mm +5 mm
GPS-08-25-155 GPB-08-25-155+1 GPB-08-25-155+2 GPB-08-25-155+3 - -
GPS-10-35-200 GPB-10-35-200+1 GPB-10-35-200+2 GPB-10-35-200+3 GPB-10-35-200+4 -
GPS-14-40-250 GPB-14-40-250+1 GPB-14-40-250+2 GPB-14-40-250+3 GPB-14-40-250+4 GPB-14-40-250+5
GPS-18-40-300 GPB-18-40-300+1 GPB-18-40-300+2 GPB-18-40-300+3 GPB-18-40-300+4 GPB-18-40-300+5
