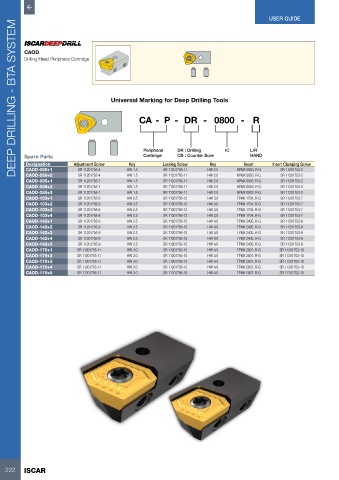

Page 224 - ISCAR(HOLE_MAKING_CATALOG_65)

USER GUIDE
DEEP DRILLING - BTA SYSTEM

CAOD
Drilling Head Peripheral Cartridge

Universal Marking for Deep Drilling Tools

CA - P - DR - 0800 - R

Peripheral DR : Drilling IC L/R
Spare Parts Cartridge CB : Counter Bore HAND
Designation Adjustment Screw Key Locking Screw Key Insert Insert Clamping Screw
CAOD-080+1 SR 11201755-4 HW 1.5 SR 11201756-11 HW 2.0 NPMX 0803..R-G SR 11201753-2
CAOD-080+2 SR 11201755-4 HW 1.5 SR 11201756-11 HW 2.0 NPMX 0803..R-G SR 11201753-2
CAOD-085+1 SR 11201755-7 HW 1.5 SR 11201756-11 HW 2.0 NPMX 0803..R-G SR 11201753-2
CAOD-085+2 SR 11201755-7 HW 1.5 SR 11201756-11 HW 2.0 NPMX 0803..R-G SR 11201753-2
CAOD-085+3 SR 11201755-7 HW 1.5 SR 11201756-11 HW 2.0 NPMX 0803..R-G SR 11201753-2
CAOD-103+1 SR 11201755-8 HW 2.5 SR 11201756-12 HW 3.0 TPMX 1704..R-G SR 11201753-7
CAOD-103+2 SR 11201755-8 HW 2.5 SR 11201756-12 HW 3.0 TPMX 1704..R-G SR 11201753-7
CAOD-103+3 SR 11201755-8 HW 2.5 SR 11201756-12 HW 3.0 TPMX 1704..R-G SR 11201753-7
CAOD-103+4 SR 11201755-8 HW 2.5 SR 11201756-12 HW 3.0 TPMX 1704..R-G SR 11201753-7
CAOD-142+1 SR 11201755-9 HW 2.5 SR 11201756-15 HW 4.0 TPMX 2405..R-G SR 11201753-9
CAOD-142+2 SR 11201755-9 HW 2.5 SR 11201756-15 HW 4.0 TPMX 2405..R-G SR 11201753-9
CAOD-142+3 SR 11201755-9 HW 2.5 SR 11201756-15 HW 4.0 TPMX 2405..R-G SR 11201753-9
CAOD-142+4 SR 11201755-9 HW 2.5 SR 11201756-15 HW 4.0 TPMX 2405..R-G SR 11201753-9
CAOD-142+5 SR 11201755-9 HW 2.5 SR 11201756-15 HW 4.0 TPMX 2405..R-G SR 11201753-9
CAOD-170+1 SR 11201755-11 HW 3.0 SR 11201756-15 HW 4.0 TPMX 2807..R-G SR 11201753-10
CAOD-170+2 SR 11201755-11 HW 3.0 SR 11201756-15 HW 4.0 TPMX 2807..R-G SR 11201753-10
CAOD-170+3 SR 11201755-11 HW 3.0 SR 11201756-15 HW 4.0 TPMX 2807..R-G SR 11201753-10
CAOD-170+4 SR 11201755-11 HW 3.0 SR 11201756-15 HW 4.0 TPMX 2807..R-G SR 11201753-10
CAOD-170+5 SR 11201755-11 HW 3.0 SR 11201756-15 HW 4.0 TPMX 2807..R-G SR 11201753-10
