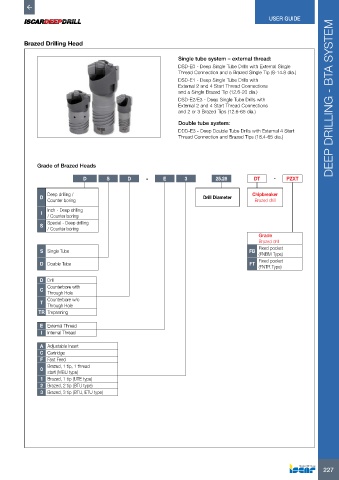

USER GUIDE




          Brazed Drilling Head

                                                                Single tube system – external thread:
                                                                DSD-E0 - Deep Single Tube Drills with External Single
                                                                Thread Connection and a Brazed Single Tip (8-14.8 dia.)
                                                                DSD-E1 - Deep Single Tube Drills with
                                                                External 2 and 4 Start Thread Connections
                                                                and a Single Brazed Tip (12.6-20 dia.)
                                                                DSD-E2/E3 - Deep Single Tube Drills with              DEEP DRILLING - BTA SYSTEM
                                                                External 2 and 4 Start Thread Connections
                                                                and 2 or 3 Brazed Tips (12.6-65 dia.)
                                                                Double tube system:
                                                                DDD-E3 - Deep Double Tube Drills with External 4 Start
                                                                Thread Connection and Brazed Tips (18.4-65 dia.)





              Grade of Brazed Heads
                              D       S       D     -     E       3          25.28        DT     -    PZXT


               D  Deep drilling /                                       Drill Diameter    Chipbreaker
                  Counter boring                                                          Brazed drill
                  Inch - Deep drilling
               I
                  / Counter boring
                  Special - Deep drilling
               S
                  / Counter boring
                                                                                            Grade
                                                                                            Brazed drill
                                                                                            Fixed pocket
               S Single Tube                                                             FB
                                                                                            (FNBM Type)
                                                                                            Fixed pocket
               D Double Tube                                                             FT
                                                                                            (FNTR Type)
               D Drill
                  Counterbore with
               C
                  Through Hole
                  Counterbore w/o
               T
                  Through Hole
               TR Trepanning

               E External Thread
               I  Internal Thread

               A Adjustable Insert
               C Cartridge
               F Fast Feed
                  Brazed, 1 tip, 1 thread
               0
                  start (MBU type)
               1 Brazed, 1 tip (UTE type)
               2 Brazed, 2 tip (BTU type)
               3 Brazed, 3 tip (BTU, ETU type)















                                                                                                                   227
