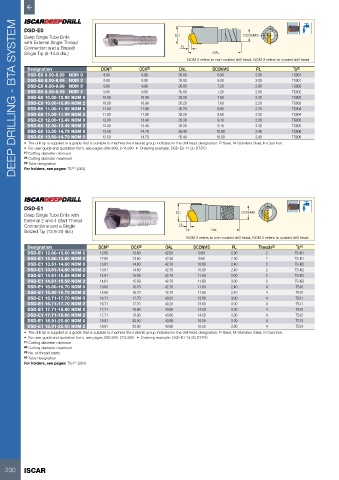

P. 232

DEEP DRILLING - BTA SYSTEM

          DSD-E0
          Deep Single Tube Drills                             DC                       DCONMS
          with External Single Thread
          Connection and a Brazed                               PL
          Single Tip (8-14.8 dia.)                                          OAL
                                                                   NOM 0 refers to non-coated drill head, NOM 2 refers to coated drill head
           Designation               DCN (1)      DCX (2)       OAL         DCONMS         PL           Ts (3)
           DSD-E0 8.00-8.99   NOM 0  8.00          8.99         35.00        6.00          2.00         TS001
           DSD-E0 8.00-8.99   NOM 2  8.00          8.99         35.00        6.00          2.00         TS001
           DSD-E0 9.00-9.99   NOM 0  9.00          9.99         35.00        7.20          2.00         TS002
           DSD-E0 9.00-9.99   NOM 2  9.00          9.99         35.00        7.20          2.00         TS002
           DSD-E0 10.00-10.99 NOM 0  10.00        10.99         35.20        7.60          2.20         TS003
           DSD-E0 10.00-10.99 NOM 2  10.00        10.99         35.20        7.60          2.20         TS003
           DSD-E0 11.00-11.99 NOM 0  11.00        11.99         35.20        8.60          2.20         TS004
           DSD-E0 11.00-11.99 NOM 2  11.00        11.99         35.20        8.60          2.20         TS004
           DSD-E0 12.00-13.49 NOM 0  12.00        13.49         35.30        9.10          2.30         TS005
           DSD-E0 12.00-13.49 NOM 2  12.00        13.49         35.30        9.10          2.30         TS005
           DSD-E0 13.50-14.79 NOM 0  13.50        14.79         35.40        10.80         2.40         TS006
           DSD-E0 13.50-14.79 NOM 2  13.50        14.79         35.40        10.80         2.40         TS006
          •  The drill tip is supplied in a grade that is suitable to machine the material group indicated in the drill head designation: P-Steel, M-Stainless Steel, K-Cast Iron.
          •  For user guide and quotation form, see pages 268-269, 274-280  •  Ordering example: DSD-E0 11.30 DT-PO
          (1)  Cutting diameter minimum
          (2)  Cutting diameter maximum
          (3)  Tube designation
          For holders, see pages: TS*** (263)








          DSD-E1
          Deep Single Tube Drills with                         DC                     DCONMS
          External 2 and 4 Start Thread
          Connections and a Single                              PL
          Brazed Tip (12.6-20 dia.)                                        OAL
                                                                  NOM 0 refers to non-coated drill head, NOM 2 refers to coated drill head.
           Designation              DCN (1)    DCX (2)     OAL       DCONMS       PL        Threads (3)  Ts (4)
           DSD-E1 12.60-13.60 NOM 0  12.60      13.60      42.50       9.60       2.30        2          TS-I01
           DSD-E1 12.60-13.60 NOM 2  12.60      13.60      42.50       9.60       2.30        2          TS-I01
           DSD-E1 13.61-14.60 NOM 0  13.61      14.60      42.70      10.60       2.40        2          TS-I02
           DSD-E1 13.61-14.60 NOM 2  13.61      14.60      42.70      10.60       2.40        2          TS-I02
           DSD-E1 14.61-15.59 NOM 0  14.61      15.59      42.70      11.60       3.00        2          TS-I03
           DSD-E1 14.61-15.59 NOM 2  14.61      15.59      42.70      11.60       3.00        2          TS-I03
           DSD-E1 15.60-16.70 NOM 0  15.60      16.70      42.70      11.60       2.40        4          TS-I0
           DSD-E1 15.60-16.70 NOM 2  15.60      16.70      42.70      11.60       2.40        4          TS-I0
           DSD-E1 16.71-17.70 NOM 0  16.71      17.70      43.20      13.60       3.00        4          TS-I1
           DSD-E1 16.71-17.70 NOM 2  16.71      17.70      43.20      13.60       3.00        4          TS-I1
           DSD-E1 17.71-18.90 NOM 0  17.71      18.90      43.60      14.50       3.30        4          TS-I2
           DSD-E1 17.71-18.90 NOM 2  17.71      18.90      43.60      14.50       3.30        4          TS-I2
           DSD-E1 18.91-20.00 NOM 0  18.91      20.00      43.60      15.50       3.30        4          TS-I3
           DSD-E1 18.91-20.00 NOM 2  18.91      20.00      43.60      15.50       3.30        4          TS-I3
          •  The drill tip is supplied in a grade that is suitable to machine the material group indicated in the drill head designation: P-Steel, M-Stainless Steel, K-Cast Iron.
          •  For user guide and quotation form, see pages 268-269, 274-280   •  Ordering example: DSD-E1 14.50 DT-PO
          (1)  Cutting diameter minimum
          (2)  Cutting diameter maximum
          (3)  No. of thread starts
          (4)  Tube designation
          For holders, see pages: TS-I** (264)
