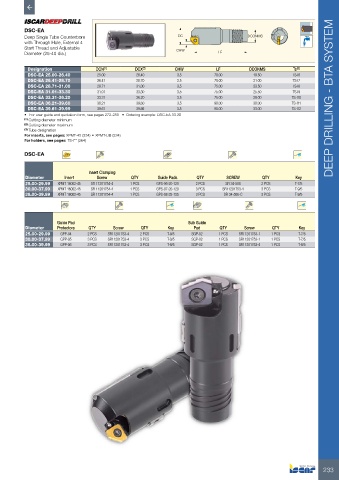

P. 235

DSC-EA
          Deep Single Tube Counterbore                          DC                      DCONMS
          with Through Hole, External 4
          Start Thread and Adjustable                          CHW
          Diameter (25-40 dia.)                                               LF

           Designation             DCN (1)      DCX (2)       CHW            LF          DCONMS         Ts (3)
           DSC-EA 25.00-26.40      25.00         26.40         3.5          70.00         19.50         TS-I6
           DSC-EA 26.41-28.70      26.41         28.70         3.5          70.00         21.00         TS-I7
           DSC-EA 28.71-31.00      28.71         31.00         3.5          75.00         23.50         TS-I8
           DSC-EA 31.01-33.30      31.01         33.30         3.5          75.00         25.50         TS-I9
           DSC-EA 33.31-36.20      33.31         36.20         3.5          75.00         28.00        TS-I10         DEEP DRILLING - BTA SYSTEM
           DSC-EA 36.21-39.60      36.21         39.60         3.5          90.00         30.00        TS-I11
           DSC-EA 39.61-39.99      39.61         39.99         3.5          90.00         33.00        TS-I12
          •   For user guide and quotation form, see pages 272-280   •  Ordering example: DSC-EA 33.20
          (1)  Cutting diameter minimum
          (2)  Cutting diameter maximum
          (3)  Tube designation
          For inserts, see pages: XPMT-45 (234) • XPMT-UB (234)
          For holders, see pages: TS-I** (264)

          DSC-EA


                                Insert Clamping
          Diameter      Insert     Screw       QTY      Guide Pads    QTY        SCREW       QTY         Key
          25.00-29.99  XPMT 16002-45  SR 11201754-4  1 PCS  GPS-06-20-120  2 PCS  SR 34-508  2 PCS       T-7/5
          30.00-37.99  XPMT 16002-45  SR 11201754-4  1 PCS  GPS-07-20-120  3 PCS  SR11201753-4  3 PCS    T-9/5
          38.00-39.99  XPMT 16002-45  SR 11201754-4  1 PCS  GPS-08-25-155  3 PCS  SR 34-506-C  3 PCS     T-9/5




                     Guide Pad                                     Sub Guide
          Diameter   Protectors  QTY     Screw     QTY      Key      Pad      QTY      Screw     QTY      Key
          25.00-29.99  GPP-04   2 PCS  SR11201753-4  2 PCS  T-9/5   SGP-02    1 PCS  SR11201753-1  1 PCS  T-7/5
          30.00-37.99  GPP-05   3 PCS  SR11201753-4  3 PCS  T-9/5   SGP-02    1 PCS  SR11201753-1  1 PCS  T-7/5
          38.00-39.99  GPP-06   3 PCS  SR11201753-4  3 PCS  T-9/5   SGP-02    1 PCS  SR11201753-4  1 PCS  T-9/5
