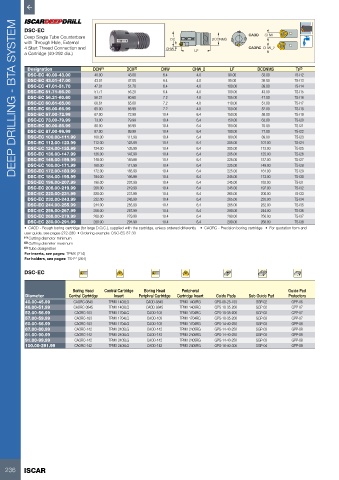

Page 238 - ISCAR(HOLE_MAKING_CATALOG_65)

DEEP DRILLING - BTA SYSTEM

DSC-EC
Deep Single Tube Counterbore DC DCONMS CAOD CHW
with Through Hole, External
4 Start Thread Connection and CHW LF CAORC CHW_2
a Cartridge (40-292 dia.)

Designation DCN (1) DCX (2) CHW CHW_2 LF DCONMS Ts (3)
DSC-EC 40.00-43.00 40.00 43.00 6.4 4.0 90.00 33.00 TS-I12
DSC-EC 43.01-47.00 43.01 47.00 6.4 4.0 95.00 36.00 TS-I13
DSC-EC 47.01-51.70 47.01 51.70 6.4 4.0 100.00 39.00 TS-I14
DSC-EC 51.71-56.20 51.71 56.20 6.4 4.0 100.00 43.00 TS-I15
DSC-EC 56.21-60.60 56.21 60.60 7.2 4.8 105.00 47.00 TS-I16
DSC-EC 60.61-65.00 60.61 65.00 7.2 4.8 110.00 51.00 TS-I17
DSC-EC 65.00-66.99 65.00 66.99 7.2 4.8 150.00 52.00 TS-I18
DSC-EC 67.00-72.99 67.00 72.99 10.4 6.4 150.00 58.00 TS-I19
DSC-EC 73.00-79.99 73.00 79.99 10.4 6.4 150.00 63.00 TS-I20
DSC-EC 80.00-86.99 80.00 86.99 10.4 6.4 180.00 70.00 TS-I21
DSC-EC 87.00-99.99 87.00 99.99 10.4 6.4 180.00 77.00 TS-I22
DSC-EC 100.00-111.99 100.00 111.99 10.4 6.4 180.00 89.00 TS-I23
DSC-EC 112.00-123.99 112.00 123.99 10.4 6.4 205.00 101.00 TS-I24
DSC-EC 124.00-135.99 124.00 135.99 10.4 6.4 205.00 113.00 TS-I25
DSC-EC 136.00-147.99 136.00 147.99 10.4 6.4 205.00 125.00 TS-I26
DSC-EC 148.00-159.99 148.00 159.99 10.4 6.4 225.00 137.00 TS-I27
DSC-EC 160.00-171.99 160.00 171.99 10.4 6.4 225.00 149.00 TS-I28
DSC-EC 172.00-183.99 172.00 183.99 10.4 6.4 225.00 161.00 TS-I29
DSC-EC 184.00-195.99 184.00 195.99 10.4 6.4 245.00 173.00 TS-I30
DSC-EC 196.00-207.99 196.00 207.99 10.4 6.4 245.00 185.00 TS-I31
DSC-EC 208.00-219.99 208.00 219.99 10.4 6.4 245.00 197.00 TS-I32
DSC-EC 220.00-231.99 220.00 231.99 10.4 6.4 265.00 208.00 TS-I33
DSC-EC 232.00-243.99 232.00 243.99 10.4 6.4 265.00 220.00 TS-I34
DSC-EC 244.00-255.99 244.00 255.99 10.4 6.4 265.00 232.00 TS-I35
DSC-EC 256.00-267.99 256.00 267.99 10.4 6.4 290.00 244.00 TS-I36
DSC-EC 268.00-279.99 268.00 279.99 10.4 6.4 290.00 256.00 TS-I37
DSC-EC 280.00-291.99 280.00 291.99 10.4 6.4 290.00 268.00 TS-I38
• CAOD - Rough boring cartridge (for large D.O.C.), supplied with the cartridge, unless ordered differently • CAORC - Precision boring cartridge • For quotation form and
user guide, see pages 272-280 • Ordering example: DSC-EC 87.30
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Tube designation
For inserts, see pages: TPMX (214)
For holders, see pages: TS-I** (264)

DSC-EC

Boring Head Central Cartridge Boring Head Peripheral Guide Pad
Diameter Central Cartridge Insert Periphral Cartridge Cartridge Insert Guide Pads Sub Guide Pad Protectors
40.00-45.99 CAORC-0845 TPMX 1403LG CAOD-0845 TPMX 1403RG GPS-08-25-155 SGP-02 GPP-06
46.00-51.99 CAORC-0845 TPMX 1403LG CAOD-0845 TPMX 1403RG GPS-10-35-200 SGP-02 GPP-07
52.00-56.99 CAORC-103 TPMX 1704LG CAOD-103 TPMX 1704RG GPS-10-35-200 SGP-02 GPP-07
57.00-59.99 CAORC-103 TPMX 1704LG CAOD-103 TPMX 1704RG GPS-10-35-200 SGP-02 GPP-07
60.00-66.99 CAORC-103 TPMX 1704LG CAOD-103 TPMX 1704RG GPS-14-40-250 SGP-03 GPP-08
67.00-80.99 CAORC-142 TPMX 2405LG CAOD-142 TPMX 2405RG GPS-14-40-250 SGP-03 GPP-08
81.00-90.99 CAORC-142 TPMX 2405LG CAOD-142 TPMX 2405RG GPS-14-40-250 SGP-03 GPP-08
91.00-99.99 CAORC-142 TPMX 2405LG CAOD-142 TPMX 2405RG GPS-14-40-250 SGP-03 GPP-08
100.00-291.99 CAORC-142 TPMX 2405LG CAOD-142 TPMX 2405RG GPS-18-40-300 SGP-04 GPP-09

236 ISCAR
