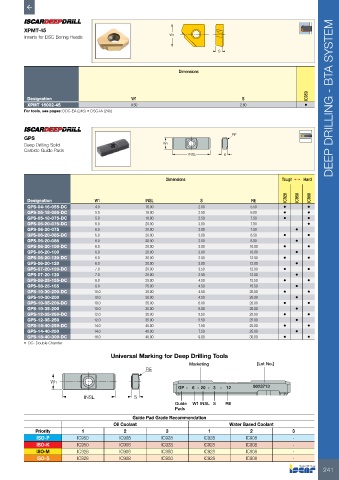

Page 243 - ISCAR(HOLE_MAKING_CATALOG_65)

XPMT-45
Inserts for DSC Boring Heads W1

S

Dimensions

IC950
Designation W1 S DEEP DRILLING - BTA SYSTEM
XPMT 16002-45 9.50 2.80 •
For tools, see pages: DDC-EA (246) • DSC-IA (240)

RE
GPS
Deep Drilling Solid W1
Carbide Guide Pads
INSL S

Dimensions Tough 1 Hard

IC928 IC950 IC908
Designation W1 INSL S RE
GPS-04-16-055-DC 4.0 16.00 2.00 5.50 • •
GPS-05-18-060-DC 5.0 18.00 2.50 6.00 • •
GPS-05-18-075-DC 5.0 18.00 2.50 7.50 • •
GPS-06-20-075-DC 6.0 20.00 3.00 7.50 •
GPS-06-20-075 6.0 20.00 3.00 7.50 •
GPS-06-20-085-DC 6.0 20.00 3.00 8.50 • •
GPS-06-20-085 6.0 20.00 3.00 8.50 •
GPS-06-20-100-DC 6.0 20.00 3.00 10.00 • •
GPS-06-20-100 6.0 20.00 3.00 10.00 •
GPS-06-20-120-DC 6.0 20.00 3.00 12.00 • •
GPS-06-20-120 6.0 20.00 3.00 12.00 •
GPS-07-20-120-DC 7.0 20.00 3.50 12.00 • •
GPS-07-20-120 7.0 20.00 3.50 12.00 •
GPS-08-25-155-DC 8.0 25.00 4.50 15.50 • •
GPS-08-25-155 8.0 25.00 4.50 15.50 •
GPS-10-30-200-DC 10.0 30.00 4.50 20.00 • •
GPS-10-30-200 10.0 30.00 4.50 20.00 •
GPS-10-35-200-DC 10.0 35.00 6.00 20.00 • •
GPS-10-35-200 10.0 35.00 6.00 20.00 •
GPS-12-35-250-DC 12.0 35.00 5.50 25.00 • •
GPS-12-35-250 12.0 35.00 5.50 25.00 •
GPS-14-40-250-DC 14.0 40.00 7.50 25.00 • •
GPS-14-40-250 14.0 40.00 7.50 25.00 •
GPS-18-40-300-DC 18.0 40.00 9.00 30.00 • •
• DC- Double Chamfer
Universal Marking for Deep Drilling Tools
Marketing [Lot No.]
RE

W1
GP - 6 - 20 - 3 - 12 9023713
INSL S
Guide W1 INSL S RE
Pads
Guide Pad Grade Recommendation
Oil Coolant Water Based Coolant
Priority 1 2 3 1 2 3
ISO-P IC950 IC908 IC928 IC928 IC908 -
ISO-K IC950 IC908 IC928 IC928 IC908 -
ISO-M IC928 IC908 IC950 IC928 IC908 -
ISO-S IC928 IC908 IC950 IC928 IC908 -
