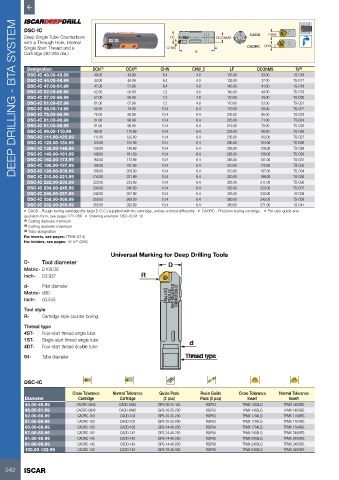

Page 244 - ISCAR(HOLE_MAKING_CATALOG_65)
P. 244
DEEP DRILLING - BTA SYSTEM
DSC-IC
Deep Single Tube Counterbore DC DCONMS CAOD CHW
with a Through Hole, Internal
Single Start Thread and a CHW CAORC CHW_2
Cartridge (40-294 dia.) LF
Designation DCN (1) DCX (2) CHW CHW_2 LF DCONMS Ts (3)
DSC-IC 40.00-43.99 40.00 43.99 6.4 4.0 135.00 33.00 TS-O16
DSC-IC 44.00-46.99 44.00 46.99 6.4 4.0 135.00 37.00 TS-O17
DSC-IC 47.00-51.99 47.00 51.99 6.4 4.0 145.00 41.00 TS-O18
DSC-IC 52.00-56.99 52.00 56.99 7.2 4.8 145.00 44.00 TS-O19
DSC-IC 57.00-60.99 57.00 60.99 7.2 4.8 170.00 49.00 TS-O20
DSC-IC 61.00-67.99 61.00 67.99 7.2 4.8 170.00 53.00 TS-O21
DSC-IC 68.00-74.99 68.00 74.99 10.4 6.4 170.00 59.00 TS-O22
DSC-IC 75.00-80.99 75.00 80.99 10.4 6.4 205.00 65.00 TS-O23
DSC-IC 81.00-90.99 81.00 90.99 10.4 6.4 205.00 71.00 TS-024
DSC-IC 91.00-98.99 91.00 98.99 10.4 6.4 215.00 79.00 TS-O25
DSC-IC 99.00-110.99 99.00 110.99 10.4 6.4 225.00 90.00 TS-O26
DSC-IC 111.00-122.99 111.00 122.99 10.4 6.4 235.00 102.00 TS-O27
DSC-IC 123.00-134.99 123.00 134.99 10.4 6.4 265.00 104.00 TS-O28
DSC-IC 135.00-148.99 135.00 148.99 10.4 6.4 265.00 126.00 TS-O29
DSC-IC 149.00-161.99 149.00 161.99 10.4 6.4 265.00 139.00 TS-O30
DSC-IC 162.00-173.99 162.00 173.99 10.4 6.4 285.00 151.00 TS-O31
DSC-IC 186.00-197.99 186.00 197.99 10.4 6.4 310.00 175.00 TS-O33
DSC-IC 198.00-209.99 198.00 209.99 10.4 6.4 310.00 187.00 TS-O34
DSC-IC 210.00-221.99 210.00 221.99 10.4 6.4 320.00 199.00 TS-O35
DSC-IC 222.00-233.99 222.00 233.99 10.4 6.4 325.00 211.00 TS-O36
DSC-IC 234.00-245.99 234.00 245.99 10.4 6.4 325.00 223.00 TS-O37
DSC-IC 246.00-257.99 246.00 257.99 10.4 6.4 325.00 235.00 TS-O38
DSC-IC 258.00-269.99 258.00 269.99 10.4 6.4 360.00 245.00 TS-O39
DSC-IC 282.00-293.99 282.00 293.99 10.4 6.4 360.00 271.00 TS-O41
• CAOD - Rough boring cartridge (for large D.O.C.) supplied with the cartridge, unless ordered differently • CAORC - Precision boring cartridge • For user guide and
quotation form, see pages 272-280 • Ordering example: DSC-IC 91.10
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Tube designation
For inserts, see pages: TPMX (214)
For holders, see pages: TS-O** (265)
Universal Marking for Deep Drilling Tools
D- Tool diameter
Metric- D100.00
Inch- D3.937
d- Pilot diameter
Metric- d90
Inch- d3.543
Tool style
R- Cartridge style counter boring
Thread type
4ST- Four-start thread single tube
1ST- Single-start thread single tube
4DT- Four-start thread double tube
94- Tube diameter
DSC-IC
Close Tolerance Normal Tolerance Guide Pads Resin Guide Close Tolerance Normal Tolerance
Diameter Cartridge Cartridge (3 pcs) Pads (3 pcs) Insert Insert
40.00-45.99 CAORC-0845 CAOD-0845 GPS-08-25-155 RGP03 TPMX 1403LG TPMX 1403RG
46.00-51.99 CAORC-0845 CAOD-0845 GPS-10-35-200 RGP03 TPMX 1403LG TPMX 1403RG
52.00-56.99 CAORC-103 CAOD-103 GPS-10-35-200 RGP03 TPMX 1704LG TPMX 1704RG
57.00-59.99 CAORC-103 CAOD-103 GPS-10-35-200 RGP03 TPMX 1704LG TPMX 1704RG
60.00-66.99 CAORC-103 CAOD-103 GPS-14-40-250 RGP04 TPMX 1704LG TPMX 1704RG
67.00-80.99 CAORC-142 CAOD-142 GPS-14-40-250 RGP04 TPMX 2405LG TPMX 2405RG
81.00-90.99 CAORC-142 CAOD-142 GPS-14-40-250 RGP05 TPMX 2405LG TPMX 2405RG
91.00-99.99 CAORC-142 CAOD-142 GPS-14-40-250 RGP06 TPMX 2405LG TPMX 2405RG
100.00-122.99 CAORC-142 CAOD-142 GPS-18-40-300 RGP06 TPMX 2405LG TPMX 2405RG
242 ISCAR
