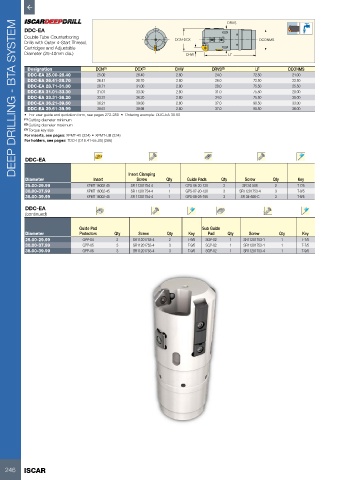

DEEP DRILLING - BTA SYSTEM
                                                                                 DRVS

          DDC-EA
          Double Tube Counterboring                            DCN-DCX                      DCONMS
          Drills with Outer 4-Start Thread,
          Cartridges and Adjustable
          Diameter (25-40mm dia.)                                 CHW            LF

           Designation             DCN (1)      DCX (2)       CHW          DRVS (3)        LF         DCONMS
           DDC-EA 25.00-26.40      25.00         26.40         2.80          24.0         72.50         21.00
           DDC-EA 26.41-28.70      26.41         28.70         2.80          26.0         72.50         23.50
           DDC-EA 28.71-31.00      28.71         31.00         2.80          28.0         75.50         25.50
           DDC-EA 31.01-33.30      31.01         33.30         2.80          31.0         75.50         28.00
           DDC-EA 33.31-36.20      33.31         36.20         2.80          34.0         75.50         30.00
           DDC-EA 36.21-39.60      36.21         39.60         2.80          37.0         90.50         33.00
           DDC-EA 39.61-39.99      39.61         39.99         2.80          37.0         90.50         36.00
          •   For user guide and quotation form, see pages 272-280  •  Ordering example: DDC-EA 30.55
          (1)  Cutting diameter minimum
          (2)  Cutting diameter maximum
          (3)  Torque key size
          For inserts, see pages: XPMT-45 (234) • XPMT-UB (234)
          For holders, see pages: TDO-I (D18.41-65.00) (266)


          DDC-EA


                                              Insert Clamping
          Diameter                Insert         Screw     Qty     Guide Pads  Qty     Screw     Qty      Key
          25.00-29.99           XPMT 16002-45  SR 11201754-4  1   GPS-06-20-120  2    SR 34-508   2      T-7/5
          30.00-37.99           XPMT 16002-45  SR 11201754-4  1   GPS-07-20-120  3   SR11201753-4  3     T-9/5
          38.00-39.99           XPMT 16002-45  SR 11201754-4  1   GPS-08-25-155  3    SR 34-506-C  3     T-9/5

          DDC-EA
          (continued)


                             Guide Pad                                  Sub Guide
          Diameter           Protectors  Qty      Screw     Qty    Key    Pad    Qty    Screw      Qty     Key
          25.00-29.99         GPP-04      2     SR11201753-4  2    T-9/5  SGP-02  1    SR11201753-1  1     T-7/5
          30.00-37.99         GPP-05      3     SR11201753-4  3    T-9/5  SGP-02  1    SR11201753-1  1     T-7/5
          38.00-39.99         GPP-06      3     SR11201753-4  3    T-9/5  SGP-02  1    SR11201753-4  1     T-9/5
