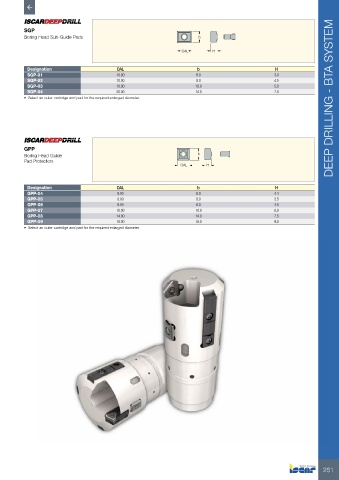

Page 253 - ISCAR(HOLE_MAKING_CATALOG_65)
P. 253

SGP
          Boring Head Sub-Guide Pads                                   b

                                                                 OAL        H

           Designation                    OAL                         b                           H
           SGP-01                         10.00                       6.0                        3.0
           SGP-02                         10.00                       8.0                        4.5
           SGP-03                         10.00                       10.0                       5.0
           SGP-04                         20.00                       14.0                       7.0
          •  Select an outer cartridge and pad for the required enlarged diameter.                                    DEEP DRILLING - BTA SYSTEM









          GPP
          Boring Head Guide                                           b
          Pad Protectors
                                                                OAL       H


           Designation                    OAL                         b                           H
           GPP-04                         8.00                        8.0                        4.4
           GPP-05                         8.00                        8.0                        3.5
           GPP-06                         8.00                        8.0                        4.5
           GPP-07                         10.00                       10.0                       6.0
           GPP-08                         14.00                       14.0                       7.5
           GPP-09                         18.00                       18.0                       9.0
          •  Select an outer cartridge and pad for the required enlarged diameter.


















































                                                                                                                   251
