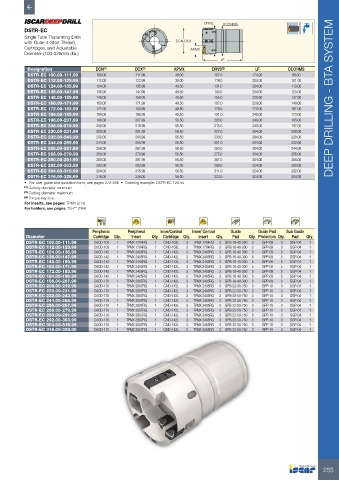

P. 257
DRVS DCONMS
DSTR-EC
Single Tube Trepanning Drills
with Outer 4-Start Thread, DCN-DCX
Cartridges, and Adjustable APMX
Diameter (100-328mm dia.)
LF
Designation DCN (1) DCX (2) APMX DRVS (3) LF DCONMS
DSTR-EC 100.00-111.99 100.00 111.99 38.00 107.0 174.00 89.00
DSTR-EC 112.00-123.99 112.00 123.99 38.00 119.0 204.00 101.00
DSTR-EC 124.00-135.99 124.00 135.99 49.50 131.0 204.00 113.00
DSTR-EC 136.00-147.99 136.00 147.99 49.50 143.0 204.00 125.00
DSTR-EC 148.00-159.99 148.00 159.99 49.50 155.0 229.00 137.00 DEEP DRILLING - BTA SYSTEM
DSTR-EC 160.00-171.99 160.00 171.99 49.50 167.0 229.00 149.00
DSTR-EC 172.00-183.99 172.00 183.99 49.50 179.0 229.00 161.00
DSTR-EC 184.00-195.99 184.00 195.99 49.50 191.0 249.00 173.00
DSTR-EC 196.00-207.99 196.00 207.99 56.50 203.0 249.00 185.00
DSTR-EC 208.00-219.99 208.00 219.99 56.50 215.0 249.00 197.00
DSTR-EC 220.00-231.99 220.00 231.99 56.50 227.0 284.00 208.00
DSTR-EC 232.00-243.99 232.00 243.99 56.50 239.0 284.00 220.00
DSTR-EC 244.00-255.99 244.00 255.99 56.50 251.0 284.00 232.00
DSTR-EC 256.00-267.99 256.00 267.99 56.50 263.0 304.00 244.00
DSTR-EC 268.00-279.99 268.00 279.99 56.50 275.0 304.00 256.00
DSTR-EC 280.00-291.99 280.00 291.99 56.50 287.0 304.00 268.00
DSTR-EC 292.00-303.99 292.00 303.99 56.50 299.0 324.00 280.00
DSTR-EC 304.00-315.99 304.00 315.99 56.50 311.0 324.00 292.00
DSTR-EC 316.00-328.99 316.00 328.00 56.50 323.0 324.00 304.00
• For user guide and quotation form, see pages 272-280 • Ordering example: DSTR-EC 120.55
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Torque key size
For inserts, see pages: TPMX (214)
For holders, see pages: TS-I** (264)
Peripheral Peripheral Inner/Central Inner/ Central Guide Guide Pad Sub Guide
Diameter Cartridge Qty. Insert Qty. Cartridge Qty. Insert Qty. Pad Qty. Protectors Qty. Pad Qty.
DSTR-EC 100.00-111.99 CAOD-103 1 TPMX 1704RG 1 CAID-103L 3 TPMX 1704RG 3 GPB-18-40-300 3 GPP-09 3 SGP-04 1
DSTR-EC 112.00-123.99 CAOD-103 1 TPMX 1704RG 1 CAID-103L 3 TPMX 1704RG 3 GPB-18-40-300 3 GPP-09 3 SGP-04 1
DSTR-EC 124.00-135.99 CAOD-142 1 TPMX 2405RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-18-40-300 3 GPP-09 3 SGP-04 1
DSTR-EC 136.00-147.99 CAOD-142 1 TPMX 2405RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-18-40-300 5 GPP-09 5 SGP-04 1
DSTR-EC 148.00-159.99 CAOD-142 1 TPMX 2405RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-18-40-300 5 GPP-09 5 SGP-04 1
DSTR-EC 160.00-171.99 CAOD-142 1 TPMX 2405RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-18-40-300 5 GPP-09 5 SGP-04 1
DSTR-EC 172.00-183.99 CAOD-142 1 TPMX 2405RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-18-40-300 5 GPP-09 5 SGP-04 1
DSTR-EC 184.00-195.99 CAOD-142 1 TPMX 2405RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-18-40-300 5 GPP-09 5 SGP-04 1
DSTR-EC 196.00-207.99 CAOD-170 1 TPMX 2807RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-18-40-300 5 GPP-09 5 SGP-04 1
DSTR-EC 208.00-219.99 CAOD-170 1 TPMX 2807RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-22-50-750 3 GPP-10 3 SGP-04 1
DSTR-EC 220.00-231.99 CAOD-170 1 TPMX 2807RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-22-50-750 3 GPP-10 3 SGP-04 1
DSTR-EC 232.00-243.99 CAOD-170 1 TPMX 2807RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-22-50-750 3 GPP-10 3 SGP-04 1
DSTR-EC 244.00-255.99 CAOD-170 1 TPMX 2807RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-22-50-750 3 GPP-10 3 SGP-04 1
DSTR-EC 256.00-267.99 CAOD-170 1 TPMX 2807RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-22-50-750 3 GPP-10 3 SGP-04 1
DSTR-EC 268.00-279.99 CAOD-170 1 TPMX 2807RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-22-50-750 3 GPP-10 3 SGP-04 1
DSTR-EC 280.00-291.99 CAOD-170 1 TPMX 2807RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-22-50-750 3 GPP-10 3 SGP-04 1
DSTR-EC 292.00-303.99 CAOD-170 1 TPMX 2807RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-22-50-750 3 GPP-10 3 SGP-04 1
DSTR-EC 304.00-315.99 CAOD-170 1 TPMX 2807RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-22-50-750 3 GPP-10 3 SGP-04 1
DSTR-EC 316.00-328.00 CAOD-170 1 TPMX 2807RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-22-50-750 3 GPP-10 3 SGP-04 1
