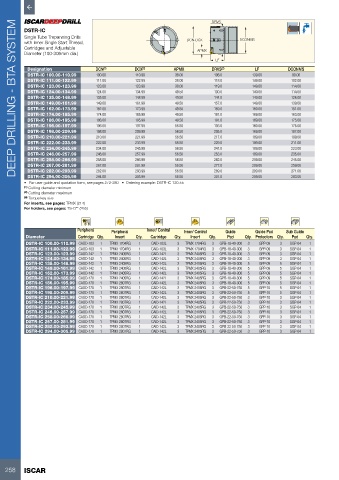

P. 260
DEEP DRILLING - BTA SYSTEM
DRVS
DSTR-IC
Single Tube Trepanning Drills DCN-DCX DCONMS
with Inner Single Start Thread,
Cartridges and Adjustable APMX
Diameter (100-306mm dia.)
LF
Designation DCN (1) DCX (2) APMX DRVS (3) LF DCONMS
DSTR-IC 100.00-110.99 100.00 110.99 38.00 106.0 139.00 90.00
DSTR-IC 111.00-122.99 111.00 122.99 38.00 118.0 149.00 102.00
DSTR-IC 123.00-123.99 123.00 123.99 38.00 119.0 149.00 114.00
DSTR-IC 124.00-134.99 124.00 134.99 49.50 130.0 149.00 114.00
DSTR-IC 135.00-148.99 135.00 148.99 49.50 144.0 149.00 126.00
DSTR-IC 149.00-161.99 149.00 161.99 49.50 157.0 149.00 139.00
DSTR-IC 162.00-173.99 162.00 173.99 49.50 169.0 169.00 151.00
DSTR-IC 174.00-185.99 174.00 185.99 49.50 181.0 169.00 163.00
DSTR-IC 186.00-195.99 186.00 195.99 49.50 191.0 169.00 175.00
DSTR-IC 196.00-197.99 196.00 197.99 56.50 193.0 169.00 175.00
DSTR-IC 198.00-209.99 198.00 209.99 56.50 205.0 169.00 187.00
DSTR-IC 210.00-221.99 210.00 221.99 56.50 217.0 189.00 199.00
DSTR-IC 222.00-233.99 222.00 233.99 56.50 229.0 189.00 211.00
DSTR-IC 234.00-245.99 234.00 245.99 56.50 241.0 189.00 223.00
DSTR-IC 246.00-257.99 246.00 257.99 56.50 253.0 189.00 235.00
DSTR-IC 258.00-266.99 258.00 266.99 56.50 262.0 209.00 245.00
DSTR-IC 267.00-281.99 267.00 281.99 56.50 277.0 209.00 259.00
DSTR-IC 282.00-293.99 282.00 293.99 56.50 289.0 209.00 271.00
DSTR-IC 294.00-305.99 294.00 305.99 56.50 301.0 209.00 283.00
• For user guide and quotation form, see pages 272-280 • Ordering example: DSTR-IC 120.55
(1) Cutting diameter minimum
(2) Cutting diameter maximum
(3) Torque key size
For inserts, see pages: TPMX (214)
For holders, see pages: TS-O** (265)
Peripheral Peripheral Inner/ Central Inner/ Central Guide Guide Pad Sub Guide
Diameter Cartridge Qty. Insert Qty. Cartridge Qty. Insert Qty. Pad Qty. Protectors Qty. Pad Qty.
DSTR-IC 100.00-110.99 CAOD-103 1 TPMX 1704RG 1 CAID-103L 3 TPMX 1704RG 3 GPB-18-40-300 3 GPP-09 3 SGP-04 1
DSTR-IC 111.00-122.99 CAOD-103 1 TPMX 1704RG 1 CAID-103L 3 TPMX 1704RG 3 GPB-18-40-300 3 GPP-09 3 SGP-04 1
DSTR-IC 123.00-123.99 CAOD-142 1 TPMX 2405RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-18-40-300 3 GPP-09 3 SGP-04 1
DSTR-IC 124.00-134.99 CAOD-142 1 TPMX 2405RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-18-40-300 3 GPP-09 3 SGP-04 1
DSTR-IC 135.00-148.99 CAOD-142 1 TPMX 2405RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-18-40-300 5 GPP-09 5 SGP-04 1
DSTR-IC 149.00-161.99 CAOD-142 1 TPMX 2405RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-18-40-300 5 GPP-09 5 SGP-04 1
DSTR-IC 162.00-173.99 CAOD-142 1 TPMX 2405RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-18-40-300 5 GPP-09 5 SGP-04 1
DSTR-IC 174.00-185.99 CAOD-170 1 TPMX 2405RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-18-40-300 5 GPP-09 5 SGP-04 1
DSTR-IC 186.00-195.99 CAOD-170 1 TPMX 2807RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-18-40-300 5 GPP-09 5 SGP-04 1
DSTR-IC 196.00-197.99 CAOD-170 1 TPMX 2807RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-22-50-750 5 GPP-10 5 SGP-04 1
DSTR-IC 198.00-209.99 CAOD-170 1 TPMX 2807RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-22-50-750 5 GPP-10 5 SGP-04 1
DSTR-IC 210.00-221.99 CAOD-170 1 TPMX 2807RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-22-50-750 3 GPP-10 3 SGP-04 1
DSTR-IC 222.00-233.99 CAOD-170 1 TPMX 2807RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-22-50-750 3 GPP-10 3 SGP-04 1
DSTR-IC 234.00-245.99 CAOD-170 1 TPMX 2807RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-22-50-750 3 GPP-10 3 SGP-04 1
DSTR-IC 246.00-257.99 CAOD-170 1 TPMX 2807RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-22-50-750 3 GPP-10 3 SGP-04 1
DSTR-IC 258.00-266.99 CAOD-170 1 TPMX 2807RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-22-50-750 3 GPP-10 3 SGP-04 1
DSTR-IC 267.00-281.99 CAOD-170 1 TPMX 2807RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-22-50-750 3 GPP-10 3 SGP-04 1
DSTR-IC 282.00-293.99 CAOD-170 1 TPMX 2807RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-22-50-750 3 GPP-10 3 SGP-04 1
DSTR-IC 294.00-305.99 CAOD-170 1 TPMX 2807RG 1 CAID-142L 3 TPMX 2405RG 3 GPB-22-50-750 3 GPP-10 3 SGP-04 1
