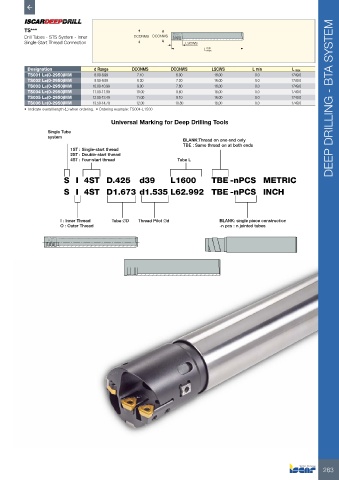

Page 265 - ISCAR(HOLE_MAKING_CATALOG_65)
P. 265

TS***
          Drill Tubes - STS System - Inner      DCONMS  DCONWS
          Single-Start Thread Connection                          LSCWS
                                                                          min
                                                                         L max

           Designation            d Range      DCONMS        DCONWS        LSCWS          L min         L max
           TS001 L=(0-2950)MM     8.00-8.99      7.10          6.00         16.00          0.0         1749.0
           TS002 L=(0-2950)MM     9.00-9.99      8.30          7.20         16.00          0.0         1749.0
           TS003 L=(0-2950)MM     10.00-10.99    9.00          7.60         16.00          0.0         1749.0
           TS004 L=(0-2950)MM     11.00-11.99    10.00         8.60         16.00          0.0         1749.0
           TS005 L=(0-2950)MM     12.00-13.49    11.00         9.10         16.00          0.0         1749.0         DEEP DRILLING - BTA SYSTEM
           TS006 L=(0-2950)MM     13.50-14.79    12.00         10.80        16.00          0.0         1749.0
          •  Indicate overall length (L) when ordering.  • Ordering example: TS004-L1500

                                        Universal Marking for Deep Drilling Tools
                  Single Tube
                  system
                                                                 BLANK:Thread on one end only
                                                                 TBE : Same thread on at both ends
                          1ST : Single-start thread
                          2ST : Double-start thread
                          4ST : Four-start thread              Tube L


                       S I 4ST D.425              d39        L1600         TBE -nPCS METRIC

                       S I 4ST D1.673 d1.535 L62.992 TBE -nPCS INCH





                      I : Inner Thread  Tube ØD   Thread Pilot Ød             BLANK: single piece construction
                      O : Outer Thread                                        -n pcs : n jointed tubes
