USER GUIDE
      DEEP DRILLING - BTA SYSTEM

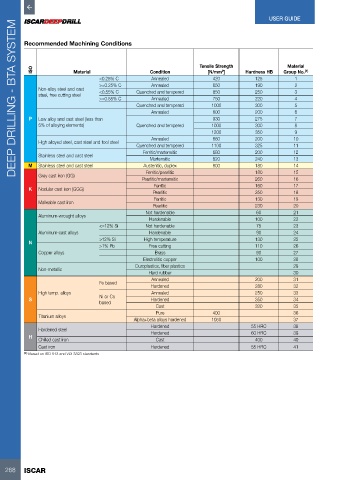

          Recommended Machining Conditions



                                                                       Tensile Strength               Material
            ISO            Material                   Condition           [N/mm ]      Hardness HB   Group No. (1)
                                                                               2
                                    <0.25% C          Annealed              420            125           1
                                    >=0.25% C         Annealed              650            190           2
               Non-alloy steel and cast   <0.55% C  Quenched and tempered   850            250           3
               steel, free cutting steel
                                    >=0.55% C         Annealed              750            220           4
                                                 Quenched and tempered     1000            300           5
                                                      Annealed              600            200           6
           P   Low alloy and cast steel (less than                          930            275           7
               5% of alloying elements)          Quenched and tempered     1000            300           8
                                                                           1200            350           9
                                                      Annealed              680            200          10
               High alloyed steel, cast steel and tool steel
                                                 Quenched and tempered     1100            325          11
                                                   Ferritic/martensitic     680            200          12
               Stainless steel and cast steel
                                                      Martensitic           820            240          13
           M   Stainless steel and cast steel      Austenitic, duplex       600            180          14
                                                    Ferritic/pearlitic                     180          15
               Grey cast iron (GG)
                                                   Pearlitic/martensitic                   260          16
                                                       Ferritic                            160          17
           K   Nodular cast iron (GGG)
                                                       Pearlitic                           250          18
                                                       Ferritic                            130          19
               Malleable cast iron
                                                       Pearlitic                           230          20
                                                    Not hardenable                         60           21
               Aluminum-wrought alloys
                                                     Hardenable                            100          22
                                    <=12% Si        Not hardenable                         75           23
               Aluminum-cast alloys                  Hardenable                            90           24
                                    >12% Si         High temperature                       130          25
           N
                                    >1% Pb           Free cutting                          110          26
               Copper alloys                           Brass                               90           27
                                                   Electrolitic copper                     100          28
                                                 Duroplastics, fiber plastics                           29
               Non-metallic
                                                     Hard rubber                                        30
                                                      Annealed                             200          31
                                    Fe based
                                                      Hardened                             280          32
               High temp. alloys                      Annealed                             250          33
           S                        Ni or Co          Hardened                             350          34
                                    based
                                                        Cast                               320          35
                                                        Pure                400                         36
               Titanium alloys
                                                Alpha+beta alloys hardened   1050                       37
                                                      Hardened                           55 HRC         38
               Hardened steel
           H                                          Hardened                           60 HRC         39
               Chilled cast iron                        Cast                               400          40
               Cast iron                              Hardened                           55 HRC         41
          (1)  Based on ISO 513 and VDI 3323 standards
