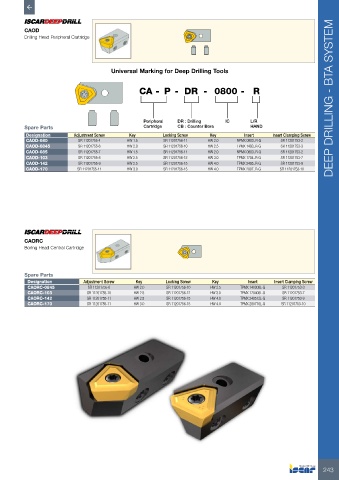

Page 245 - ISCAR(HOLE_MAKING_CATALOG_65)

CAOD
Drilling Head Peripheral Cartridge

Universal Marking for Deep Drilling Tools

CA - P - DR - 0800 - R DEEP DRILLING - BTA SYSTEM

Peripheral DR : Drilling IC L/R
Spare Parts Cartridge CB : Counter Bore HAND
Designation Adjustment Screw Key Locking Screw Key Insert Insert Clamping Screw
CAOD-080 SR 11201755-4 HW 1.5 SR 11201756-11 HW 2.0 NPMX 0803..R-G SR 11201753-2
CAOD-0845 SR 11201755-6 HW 2.0 SR 11201756-10 HW 2.5 TPMX 1403..R-G SR 11201753-3
CAOD-085 SR 11201755-7 HW 1.5 SR 11201756-11 HW 2.0 NPMX 0803..R-G SR 11201753-2
CAOD-103 SR 11201755-8 HW 2.5 SR 11201756-12 HW 3.0 TPMX 1704..R-G SR 11201753-7
CAOD-142 SR 11201755-9 HW 2.5 SR 11201756-15 HW 4.0 TPMX 2405..R-G SR 11201753-9
CAOD-170 SR 11201755-11 HW 3.0 SR 11201756-15 HW 4.0 TPMX 2807..R-G SR 11201753-10

CAORC
Boring Head Central Cartridge

Spare Parts
Designation Adjustment Screw Key Locking Screw Key Insert Insert Clamping Screw
CAORC-0845 SR 11201755-6 HW 2.0 SR 11201756-10 HW 2.5 TPMX 140308L-G SR 11201753-3
CAORC-103 SR 11201755-10 HW 2.5 SR 11201756-12 HW 3.0 TPMX 170408L-G SR 11201753-7
CAORC-142 SR 11201755-11 HW 2.5 SR 11201756-15 HW 4.0 TPMX 240512L-G SR 11201753-9
CAORC-170 SR 11201755-11 HW 3.0 SR 11201756-15 HW 4.0 TPMX 280716L-G SR 11201753-10

243
