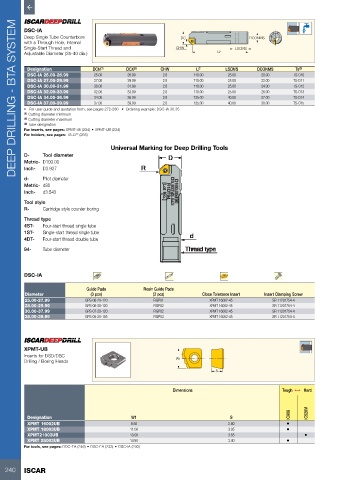

P. 242

DEEP DRILLING - BTA SYSTEM

         DSC-IA
         Deep Single Tube Counterbore                            DC                      DCONMS
         with a Through Hole, Internal
         Single-Start Thread and                               CHW                  LSCMS
         Adjustable Diameter (25-40 dia.)                                    LF

           Designation            DCN (1)    DCX (2)     CHW          LF        LSCMS      DCONMS        Ts (3)
           DSC-IA 25.00-26.99     25.00       26.99       2.8        110.00      25.00       20.00      TS-O10
           DSC-IA 27.00-29.99     27.00       29.99       2.8        110.00      25.00       22.00      TS-O11
           DSC-IA 30.00-31.99     30.00       31.99       2.8        110.00      25.00       24.00      TS-O12
           DSC-IA 32.00-33.99     32.00       33.99       2.8        110.00      25.00       26.00      TS-O13
           DSC-IA 34.00-36.99     34.00       36.99       2.8        135.00      40.00       27.00      TS-O14
           DSC-IA 37.00-39.99     37.00       39.99       2.8        135.00      40.00       30.00      TS-O15
         •   For user guide and quotation form, see pages 272-280   •  Ordering example: DSC-IA 30.35
         (1)  Cutting diameter minimum
         (2)  Cutting diameter maximum
         (3)  Tube designation
         For inserts, see pages: XPMT-45 (234) • XPMT-UB (234)
         For holders, see pages: TS-O** (265)

                                        Universal Marking for Deep Drilling Tools
         D-     Tool diameter
         Metric- D100.00
         Inch-  D3.937
         d-     Pilot diameter
         Metric- d90
         Inch-  d3.543
         Tool style
         R-     Cartridge style counter boring
         Thread type
         4ST-   Four-start thread single tube
         1ST-   Single-start thread single tube
         4DT-   Four-start thread double tube
         94-    Tube diameter




         DSC-IA

                               Guide Pads          Resin Guide Pads
          Diameter               (3 pcs)               (3 pcs)          Close Tolerance Insert  Insert Clamping Screw
          25.00-27.99          GPS-06-20-120           RGP01               XPMT 16002-45         SR 11201754-4
          28.00-29.99          GPS-06-20-120           RGP02               XPMT 16002-45         SR 11201754-4
          30.00-37.99          GPS-07-20-120           RGP02               XPMT 16002-45         SR 11201754-4
          38.00-39.99          GPS-08-25-155           RGP03               XPMT 16002-45         SR 11201754-4






         XPMT-UB
         Inserts for DSD/DSC
         Drilling / Boring Heads                               W1
                                                                             S


                                                              Dimensions                            Tough 1   Hard



                                                                                                       IC908  IC520M
           Designation                         W1                                 S
           XPMT 16002UB                        9.50                              2.80                 •
           XPMT 18003UB                        11.00                             3.05                 •
           XPMT21003UB                         13.00                             3.55                       •
           XPMT 25003UB                        14.50                             3.40                 •
         For tools, see pages: DDC-EA (246) • DSC-EA (233) • DSC-IA (240)


   240    ISCAR
