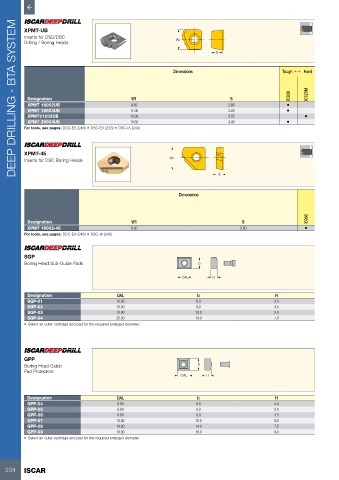

DEEP DRILLING - BTA SYSTEM

          XPMT-UB
          Inserts for DSD/DSC                                  W1
          Drilling / Boring Heads
                                                                             S


                                                              Dimensions                            Tough 1   Hard



                                                                                                       IC908  IC520M
           Designation                         W1                                 S
           XPMT 16002UB                        9.50                              2.80                 •
           XPMT 18003UB                        11.00                             3.05                 •
           XPMT21003UB                         13.00                             3.55                       •
           XPMT 25003UB                        14.50                             3.40                 •
          For tools, see pages: DDC-EA (246) • DSC-EA (233) • DSC-IA (240)



          XPMT-45
          Inserts for DSC Boring Heads                       W1

                                                                              S


                                                                Dimensions



                                                                                                             IC950
           Designation                         W1                                     S
           XPMT 16002-45                       9.50                                  2.80                   •
          For tools, see pages: DDC-EA (246) • DSC-IA (240)


          SGP
          Boring Head Sub-Guide Pads                                   b

                                                                 OAL        H


           Designation                    OAL                         b                           H
           SGP-01                         10.00                       6.0                        3.0
           SGP-02                         10.00                       8.0                        4.5
           SGP-03                         10.00                       10.0                       5.0
           SGP-04                         20.00                       14.0                       7.0
          •  Select an outer cartridge and pad for the required enlarged diameter.






          GPP
          Boring Head Guide                                           b
          Pad Protectors
                                                                OAL       H



           Designation                    OAL                         b                           H
           GPP-04                         8.00                        8.0                        4.4
           GPP-05                         8.00                        8.0                        3.5
           GPP-06                         8.00                        8.0                        4.5
           GPP-07                         10.00                       10.0                       6.0
           GPP-08                         14.00                       14.0                       7.5
           GPP-09                         18.00                       18.0                       9.0
          •  Select an outer cartridge and pad for the required enlarged diameter.
