USER GUIDE

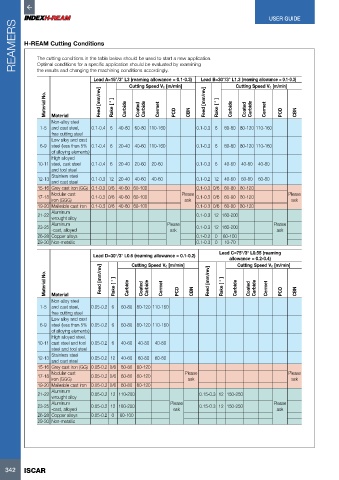

REAMERS H-REAM Cutting Conditions

The cutting conditions in the table below should be used to start a new application.
Optimal conditions for a specific application should be evaluated by examining
the results and changing the machining conditions accordingly.
Lead A=15°/3° L3 (reaming allowance = 0.1-0.3) Lead B=30°/3° L1.3 (reaming allowance = 0.1-0.3)
Cutting Speed Vc [m/min] Cutting Speed Vc [m/min]
Material No. Feed [mm/rev] Rake [ ° ] Carbide Coated Carbide Cermet PCD CBN Feed [mm/rev] Rake [ ° ] Carbide Coated Carbide Cermet PCD CBN

Material
Non-alloy steel
1-5 and cast steel, 0.1-0.4 6 40-60 60-80 110-160 0.1-0.3 6 60-80 80-120 110-160
free cutting steel
Low alloy and cast
6-9 steel (less than 5% 0.1-0.4 6 20-40 40-60 110-160 0.1-0.3 6 60-80 80-120 110-160
of alloying elements)
High alloyed
10-11 steel, cast steel 0.1-0.4 6 20-40 20-60 20-60 0.1-0.3 6 40-60 40-80 40-80
and tool steel
Stainless steel
12-13 0.1-0.3 12 20-40 40-60 40-60 0.1-0.2 12 40-60 60-80 60-80
and cast steel
15-16 Grey cast iron (GG) 0.1-0.3 0/6 40-60 60-100 0.1-0.3 0/6 60-80 80-120
Nodular cast Please Please
17-18 0.1-0.3 0/6 40-60 60-100 0.1-0.3 0/6 60-80 80-120
iron (GGG) ask ask
19-20 Malleable cast iron 0.1-0.3 0/6 40-60 60-100 0.1-0.3 0/6 60-80 80-120
Aluminum
21-22 0.1-0.3 12 160-200
wrought alloy
Aluminum Please Please
23-25 0.1-0.3 12 160-200
-cast, alloyed ask ask
26-28 Copper alloys 0.1-0.2 0 80-100
29-30 Non-metallic 0.1-0.3 0 10-70
Lead C=75°/3° L0.55 (reaming
Lead D=30°/3° L0.6 (reaming allowance = 0.1-0.2)
allowance = 0.2-0.4)
Cutting Speed Vc [m/min]
Cutting Speed Vc [m/min]
Material No. Feed [mm/rev] Rake [ ° ] Carbide Coated Carbide Cermet PCD CBN Feed [mm/rev] Rake [ ° ] Carbide Coated Carbide Cermet PCD CBN

Material
Non-alloy steel
1-5 and cast steel, 0.05-0.2 6 60-80 80-120 110-160
free cutting steel
Low alloy and cast
6-9 steel (less than 5% 0.05-0.2 6 60-80 80-120 110-160
of alloying elements)
High alloyed steel,
10-11 cast steel and tool 0.05-0.2 6 40-60 40-80 40-80
steel and tool steel
Stainless steel
12-13 0.05-0.2 12 40-60 60-80 60-80
and cast steel
15-16 Grey cast iron (GG) 0.05-0.2 0/6 60-80 80-120
Nodular cast Please Please
17-18 0.05-0.2 0/6 60-80 80-120
iron (GGG) ask ask
19-20 Malleable cast iron 0.05-0.2 0/6 60-80 80-120
Aluminum
21-22 0.05-0.2 12 110-200 0.15-0.3 12 150-250
wrought alloy
Aluminum Please Please
23-25 0.05-0.2 12 180-200 0.15-0.3 12 150-250
-cast, alloyed ask ask
26-28 Copper alloys 0.05-0.2 0 80-100
29-30 Non-metallic
