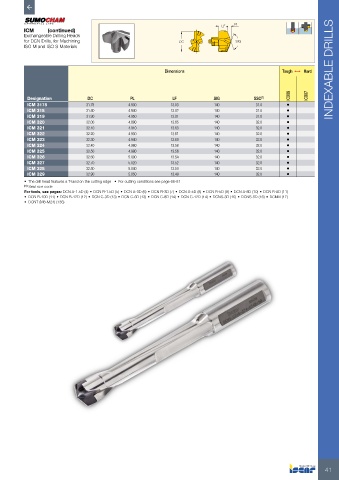

Page 43 - ISCAR(HOLE_MAKING_CATALOG_65)

LF PL
ICM (continued)
Exchangeable Drilling Heads
for DCN Drills, for Machining DC SIG
ISO M and ISO S Materials

Dimensions Tough 1 Hard INDEXABLE DRILLS

IC908 IC907
Designation DC PL LF SIG SSC (1)
ICM 3175 31.75 4.930 13.03 140 31.0 •
ICM 318 31.80 4.940 13.02 140 31.0 •
ICM 319 31.90 4.950 13.01 140 31.0 •
ICM 320 32.00 4.890 13.65 140 32.0 •
ICM 321 32.10 4.910 13.63 140 32.0 •
ICM 322 32.20 4.930 13.61 140 32.0 •
ICM 323 32.30 4.940 13.60 140 32.0 •
ICM 324 32.40 4.960 13.58 140 32.0 •
ICM 325 32.50 4.980 13.56 140 32.0 •
ICM 326 32.60 5.000 13.54 140 32.0 •
ICM 327 32.70 5.020 13.52 140 32.0 •
ICM 328 32.80 5.040 13.50 140 32.0 •
ICM 329 32.90 5.050 13.49 140 32.0 •
• The drill head features a T-land on the cutting edge • For cutting conditions see page 68-81
(1) Seat size code
For tools, see pages: DCN A-1.5D (4) • DCN R-1.5D (5) • DCN A-3D (6) • DCN R-3D (7) • DCN A-5D (8) • DCN R-5D (9) • DCN A-8D (10) • DCN R-8D (11)
• DCN R-10D (11) • DCN R-12D (12) • DCN C-3D (13) • DCN C-5D (13) • DCN C-8D (14) • DCN C-12D (14) • DCNS-3D (15) • DCNS-5D (16) • DCNM (17)
• DCNT (M8-M24) (136)

41
