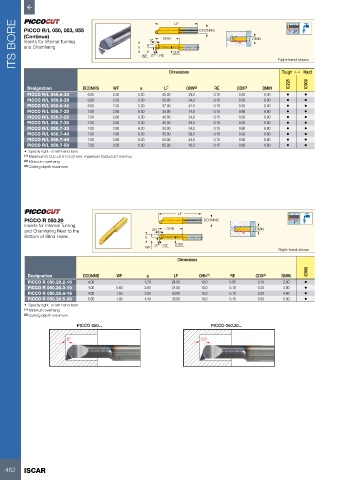

Page 464 - ISCAR(HOLE_MAKING_CATALOG_65)

ITS BORE PICCO R/L 050, 053, 055 a WF 8° 20° RE OHN CDX DCONMS DMIN
LF
(Continue)
Inserts for Internal Turning
and Chamfering

Dimensions Right-hand shown
Tough 1 Hard
IC228 IC908
Designation DCONMS WF a LF OHN (2) RE CDX (3) DMIN
PICCO R/L 050.6-30 6.00 2.30 5.30 45.00 29.0 0.15 0.50 6.00 • •
PICCO R/L 050.6-35 6.00 2.30 5.30 50.00 34.0 0.15 0.50 6.00 • •
PICCO R/L 050.6-42 6.00 2.30 5.30 57.00 41.0 0.15 0.50 6.00 • •
PICCO R/L 050.7-20 7.00 2.80 6.30 35.00 19.0 0.15 0.60 6.80 • •
PICCO R/L 050.7-25 7.00 2.80 6.30 40.00 24.0 0.15 0.60 6.80 • •
PICCO R/L 050.7-30 7.00 2.80 6.30 45.00 29.0 0.15 0.60 6.80 • •
PICCO R/L 050.7-35 7.00 2.80 6.30 50.00 34.0 0.15 0.60 6.80 • •
PICCO R/L 050.7-40 7.00 2.80 6.30 55.00 39.0 0.15 0.60 6.80 • •
PICCO R/L 050.7-45 7.00 2.80 6.30 60.00 44.0 0.15 0.60 6.80 • •
PICCO R/L 050.7-50 7.00 2.80 6.30 65.00 49.0 0.15 0.60 6.80 • •
• Specify right- or left-hand bars
(1) Maximum D.O.C.=0.01-0.03 mm, maximum feed=0.01 mm/rev.
(2) Minimum overhang
(3) Cutting depth maximum

LF

PICCO R 050.20 DCONMS
Inserts for Internal Turning
and Chamfering Next to the 20° OHN DMIN
Bottom of Blind Holes a
20° RE CDX
WF
Right-hand shown
Dimensions
IC908
Designation DCONMS WF a LF OHN (1) RE CDX (2) DMIN
PICCO R 050.20.2-10 4.00 - 1.70 24.00 10.0 0.05 0.10 2.00 •
PICCO R 050.20.3-10 4.00 0.60 2.60 24.00 10.0 0.10 0.20 2.80 •
PICCO R 050.20.4-16 4.00 1.50 3.50 30.00 16.0 0.10 0.30 4.00 •
PICCO R 050.20.5-20 5.00 1.90 4.40 35.00 19.0 0.15 0.50 5.00 •
• Specify right- or left-hand bars
(1) Minimum overhang
(2) Cutting depth maximum
PICCO 050... PICCO 050.20...

8° 20°
