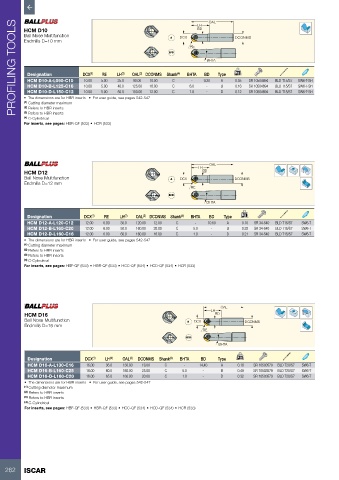

Page 264 - ISCAR(MILLINGCATALOG 38_2021)

PROFILING TOOLS HCM D10 DCX (1) 5.00 LH (2) OAL (3) DCONMS Shank (4) DCX BHTA LH 9.20 OAL Type DCONMS SR 10504694 BLD T15/S7 SW6-T-SH
BD
Ball Nose Multifunction
A
Endmills D=10 mm
RE
B/D
BHTA

kg
Designation
RE
BD
HCM D10-A-L090-C10
10.00
90.00
25.0
C
-
A
10.00
0.05
HCM D10-B-L125-C16
125.00
0.16
5.00
BLD T15/S7
SR 10504694
16.00
SW6-T-SH
40.0
-
B
C
10.00
6.0
150.00
50.0
D
-
SR 10504694
0.12
BLD T15/S7
SW6-T-SH
12.00
1.8
C
5.00
HCM D10-D-L150-C12
10.00
• The dimensions are for HBR inserts • For user guide, see pages 542-547
(1) Cutting diameter maximum
(2) Refers to HBR inserts
(3) Refers to HBR inserts
(4) C-Cylindrical
For inserts, see pages: HBR-QF (533) • HCR (533)
OAL
LH

HCM D12 BD
Ball Nose Multifunction A DCX DCONMS
Endmills D=12 mm
RE
B/D
BHTA
Designation DCX (1) RE LH (2) OAL (3) DCONMS Shank (4) BHTA BD Type kg
HCM D12-A-L120-C12 12.00 6.00 30.0 120.00 12.00 C - 10.60 A 0.10 SR 34-540 BLD T15/S7 SW6-T
HCM D12-B-L160-C20 12.00 6.00 50.0 160.00 20.00 C 5.0 - B 0.32 SR 34-540 BLD T15/S7 SW6-T
HCM D12-D-L160-C16 12.00 6.00 60.0 160.00 16.00 C 1.0 - D 0.21 SR 34-540 BLD T15/S7 SW6-T
• The dimensions are for HBR inserts • For user guide, see pages 542-547
(1) Cutting diameter maximum
(2) Refers to HBR inserts
(3) Refers to HBR inserts
(4) C-Cylindrical
For inserts, see pages: HBF-QF (533) • HBR-QF (533) • HCC-QF (534) • HCD-QF (534) • HCR (533)
OAL
LH

HCM D16 BD
Ball Nose Multifunction A DCX DCONMS
Endmills D=16 mm
RE
B/D
BHTA
Designation DCX (1) LH (2) OAL (3) DCONMS Shank (4) BHTA BD Type kg
HCM D16-A-L130-C16 16.00 36.0 130.00 16.00 C - 14.40 A 0.18 SR 10503579 BLD T20/S7 SW6-T
HCM D16-B-L160-C25 16.00 60.0 160.00 25.00 C 5.0 - B 0.49 SR 10503579 BLD T20/S7 SW6-T
HCM D16-D-L160-C20 16.00 65.0 160.00 20.00 C 1.0 - D 0.32 SR 10503579 BLD T20/S7 SW6-T
• The dimensions are for HBR inserts • For user guide, see pages 542-547
(1) Cutting diameter maximum
(2) Refers to HBR inserts
(3) Refers to HBR inserts
(4) C-Cylindrical
For inserts, see pages: HBF-QF (533) • HBR-QF (533) • HCC-QF (534) • HCD-QF (534) • HCR (533)
262 ISCAR
