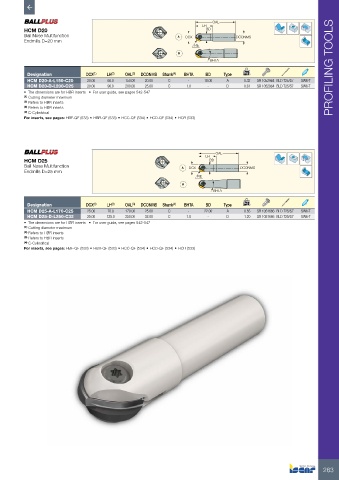

Page 265 - ISCAR(MILLINGCATALOG 38_2021)

OAL
LH

HCM D20 BD
Ball Nose Multifunction A DCX DCONMS
Endmills D=20 mm
RE
D
BHTA

Designation DCX (1) LH (2) OAL (3) DCONMS Shank (4) BHTA BD Type kg PROFILING TOOLS
HCM D20-A-L150-C20 20.00 60.0 150.00 20.00 C - 18.00 A 0.32 SR 1052964 BLD T25/S7 SW6-T
HCM D20-D-L200-C25 20.00 90.0 200.00 25.00 C 1.0 - D 0.61 SR 1052964 BLD T25/S7 SW6-T
• The dimensions are for HBR inserts • For user guide, see pages 542-547
(1) Cutting diameter maximum
(2) Refers to HBR inserts
(3) Refers to HBR inserts
(4) C-Cylindrical
For inserts, see pages: HBF-QF (533) • HBR-QF (533) • HCC-QF (534) • HCD-QF (534) • HCR (533)

OAL
LH

HCM D25 BD
Ball Nose Multifunction A DCX DCONMS
Endmills D=25 mm
RE
D
BHTA

Designation DCX (1) LH (2) OAL (3) DCONMS Shank (4) BHTA BD Type kg
HCM D25-A-L170-C25 25.00 70.0 170.00 25.00 C - 22.00 A 0.55 SR 1051666 BLD T25/S7 SW6-T
HCM D25-D-L250-C32 25.00 125.0 250.00 32.00 C 1.8 - D 1.20 SR 1051666 BLD T25/S7 SW6-T
• The dimensions are for HBR inserts • For user guide, see pages 542-547
(1) Cutting diameter maximum
(2) Refers to HBR inserts
(3) Refers to HBR inserts
(4) C-Cylindrical
For inserts, see pages: HBF-QF (533) • HBR-QF (533) • HCC-QF (534) • HCD-QF (534) • HCR (533)

263
