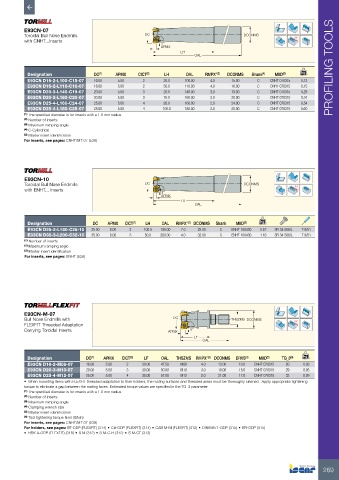

E93CN-07
Toroidal Bull Nose Endmills DC DCONMS Rd°
with CNHT...Inserts 3°
APMX
LH
OAL

Designation DC (1) APMX CICT (2) LH OAL RMPX° (3) DCONMS Shank (4) MIID (5) kg PROFILING TOOLS
E93CN D16-2-L100-C15-07 16.00 5.00 2 20.0 100.00 4.0 15.00 C CNHT 070315 0.13
E93CN D16-2-L110-C16-07 16.00 5.00 2 50.0 110.00 4.0 16.00 C CNHT 070315 0.15
E93CN D20-3-L140-C19-07 20.00 5.00 3 20.0 140.00 3.0 19.00 C CNHT 070315 0.29
E93CN D20-3-L160-C20-07 20.00 5.00 3 75.0 160.00 3.0 20.00 C CNHT 070315 0.34
E93CN D25-4-L160-C24-07 25.00 5.00 4 20.0 160.00 2.0 24.00 C CNHT 070315 0.54
E93CN D25-4-L180-C25-07 25.00 5.00 4 100.0 180.00 2.0 25.00 C CNHT 070315 0.60
(1) The specified diameter is for inserts with a 1.0 mm radius.
(2) Number of inserts
(3) Maximum ramping angle
(4) C-Cylindrical
(5) Master insert identification
For inserts, see pages: CNHT/MT 07 (538)

E93CN-10
Toroidal Bull Nose Endmills DC DCONMS Rd°
with ENHT... Inserts 3°
APMX
LH
OAL

Designation DC APMX CICT (1) LH OAL RMPX° (2) DCONMS Shank MIID (3) kg
E93CN D25-2-L180-C25-10 25.00 8.00 2 100.0 180.00 7.0 25.00 C ENHT 100430 0.57 SR 34-506/L T-9/51
E93CN D35-3-L200-C32-10 35.00 8.00 3 50.0 200.00 4.0 32.00 C ENHT 100430 1.18 SR 34-506/L T-9/51
(1) Number of inserts
(2) Maximum ramping angle
(3) Master insert identification
For inserts, see pages: ENHT (538)

E93CN-M-07
Bull Nose Endmills with DC THSZMS DCONMS Rd°
FLEXFIT Threaded Adaptation
Carrying Toroidal Inserts APMX 3°
LF
OAL

Designation DC (1) APMX CICT (2) LF OAL THSZMS RMPX° (3) DCONMS DRVS (4) MIID (5) TQ_3 (6) kg
E93CN D16-2-M08-07 16.00 5.00 2 30.00 47.50 M08 4.0 13.00 10.0 CNHT 070315 20 0.03
E93CN D20-3-M10-07 20.00 5.00 3 30.00 50.00 M10 3.0 18.00 15.0 CNHT 070315 29 0.05
E93CN D25-4-M12-07 25.00 5.00 4 35.00 57.00 M12 2.0 21.00 17.0 CNHT 070315 33 0.09
• When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening
torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter
(1) The specified diameter is for inserts with a 1.0 mm radius.
(2) Number of inserts
(3) Maximum ramping angle
(4) Clamping wrench size
(5) Master insert identification
(6) Tool tightening torque Nxm (lbfxin)
For inserts, see pages: CNHT/MT 07 (538)
For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
• HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)
