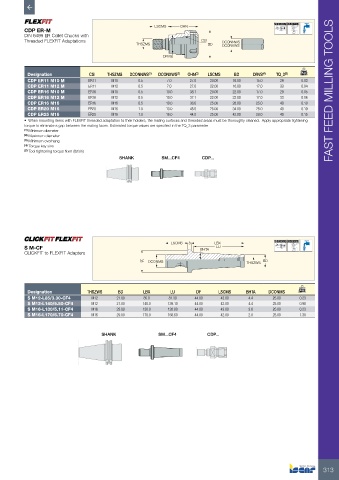

Page 315 - ISCAR(MILLINGCATALOG 38_2021)

A 0.003 A 58-60 HRc
LSCMS OHN
CDP ER-M
DIN 6499 ER Collet Chucks with
Threaded FLEXFIT Adaptations CSI DCONNWS
THSZMS BD DCONXWS
DRVS

Designation CSI THSZMS DCONNWS (1) DCONXWS (2) OHN (3) LSCMS BD DRVS (4) TQ_3 (5) kg
CDP ER11 M10 M ER11 M10 0.5 7.0 27.0 20.00 16.00 15.0 29 0.03
CDP ER11 M12 M ER11 M12 0.5 7.0 27.0 22.00 16.00 17.0 33 0.04
CDP ER16 M10 M ER16 M10 0.5 10.0 38.1 20.00 22.00 17.0 29 0.05 FAST FEED MILLING TOOLS
CDP ER16 M12 M ER16 M12 0.5 10.0 37.1 22.00 22.00 17.0 33 0.06
CDP ER16 M16 ER16 M16 0.5 10.0 36.6 25.00 28.00 25.0 40 0.10
CDP ER20 M16 ER20 M16 1.0 13.0 45.5 25.00 34.00 25.0 40 0.19
CDP ER25 M16 ER25 M16 1.0 16.0 44.5 25.00 42.00 28.0 40 0.15
• When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening
torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter
(1) Minimum diameter
(2) Maximum diameter
(3) Minimum overhang
(4) Torque key size
(5) Tool tightening torque Nxm (lbfxin)
SHANK SM...CF4 CDP...

LSCMS 8 LBX A 0.005 A 58-60 HRc

S M-CF BHTA LU
CLICKFIT to FLEXFIT Adapters
DF DCONMS THSZWS BD

Designation THSZWS BD LBX LU DF LSCMS BHTA DCONMS kg
S M12-L85/3.30-CF4 M12 21.00 85.0 81.30 44.00 42.00 4.4 25.00 0.23
S M12-L140/5.50-CF4 M12 21.00 140.0 139.10 44.00 42.00 4.4 25.00 0.98
S M16-L130/5.11-CF4 M16 29.00 130.0 126.80 44.00 42.00 2.6 25.00 0.23
S M16-L170/6.70-CF4 M16 29.00 170.0 168.60 44.00 42.00 2.0 25.00 1.30

SHANK SM...CF4 CDP...

313
