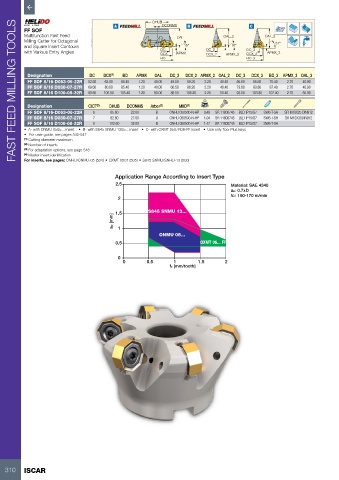

Page 312 - ISCAR(MILLINGCATALOG 38_2021)
P. 312
FAST FEED MILLING TOOLS
DHUB
A DCONMS B C
FF SOF
Multifunction Fast Feed OAL OAL_2 OAL_3
Milling Cutter for Octagonal 31º
and Square Insert Contours 15° 16°
with Various Entry Angles DC APMX DC_2 APMX_2 DC_3 APMX_3
DCX_3
DCX
DCX_2
BD BD_3
Designation DC DCX (1) BD APMX OAL DC_2 DCX_2 APMX_2 OAL_2 DC_3 DCX_3 BD_3 APMX_3 OAL_3
FF SOF 8/16-D063-06-22R 52.60 63.00 68.40 1.20 40.00 49.50 69.20 2.20 40.40 56.60 66.80 70.40 2.70 40.90
FF SOF 8/16 D080-07-27R 69.60 80.00 85.40 1.20 40.00 66.50 86.20 2.20 40.40 73.60 83.80 87.40 2.70 40.90
FF SOF 8/16 D100-08-32R 89.60 100.00 105.40 1.20 50.00 86.50 106.20 2.20 50.40 93.60 103.80 107.40 2.70 50.90
Designation CICT (2) DHUB DCONMS Arbor (3) MIID (4) kg
FF SOF 8/16-D063-06-22R 6 65.60 22.00 B ONHU 050500-N-HP 0.48 SR 11800745 BLD IP15/S7 SW6-T-SH SR M10X25 DIN912
FF SOF 8/16 D080-07-27R 7 82.60 27.00 B ONHU 050500-N-HP 1.04 SR 11800745 BLD IP15/S7 SW6-T-SH SR M12X30DIN912
FF SOF 8/16 D100-08-32R 8 102.60 32.00 B ONHU 050500-N-HP 1.47 SR 11800745 BLD IP15/S7 SW6-T-SH
• A- with ONMU 0505... insert • B- with S845 SNMU 1305... insert • C- with OXMT 0507R08-FF insert • Use only Torx Plus keys
• For user guide, see pages 542-547
(1) Cutting diameter maximum
(2) Number of inserts
(3) For adaptation options, see page 548
(4) Master insert identification
For inserts, see pages: ONHU/ONMU-05 (504) • OXMT 0507 (505) • S845 SNMU/SNHU-13 (500)
Application Range According to Insert Type
2.5 Material: SAE 4340
ae: 0.7xD
Vc: 150-170 m/min
2
1.5 S845 SNMU 13...
ap [mm] 1
ONMU 05...
0.5 OXMT 05... FF
0
0 0.5 1 1.5 2
fz [mm/tooth]
310 ISCAR
