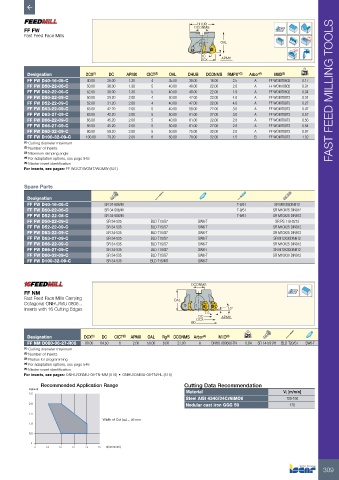

Page 311 - ISCAR(MILLINGCATALOG 38_2021)

DHUB
DCONMS
FF FW
Fast Feed Face Mills
Rd°
OAL
DC
DCX APMX

Designation DCX (1) DC APMX CICT (2) OAL DHUB DCONMS RMPX° (3) Arbor (4) MIID (5) kg
FF FW D40-16-06-C 40.00 26.00 1.30 4 35.00 38.00 16.00 2.5 A FF WOMT0602 0.17
FF FW D50-22-06-C 50.00 36.00 1.30 5 40.00 48.00 22.00 2.0 A FF WOMT0602 0.31
FF FW D52-22-06-C 52.00 38.00 1.30 5 40.00 48.00 22.00 1.9 A FF WOMT0602 0.34 FAST FEED MILLING TOOLS
FF FW D50-22-09-C 50.00 29.20 2.00 4 50.00 47.00 22.00 4.0 A FF WOMT09T3 0.34
FF FW D52-22-09-C 52.00 31.20 2.00 4 40.00 47.00 22.00 4.0 A FF WOMT09T3 0.27
FF FW D63-22-09-C 63.00 42.20 2.00 5 40.00 58.00 22.00 3.0 A FF WOMT09T3 0.47
FF FW D63-27-09-C 63.00 42.20 2.00 5 50.00 61.00 27.00 3.0 A FF WOMT09T3 0.57
FF FW D66-22-09-C 66.00 45.20 2.00 5 40.00 61.00 22.00 2.8 A FF WOMT09T3 0.56
FF FW D66-27-09-C 66.00 45.20 2.00 5 50.00 61.00 27.00 2.8 A FF WOMT09T3 0.64
FF FW D80-32-09-C 80.00 59.20 2.00 5 50.00 75.00 32.00 2.0 A FF WOMT09T3 0.97
FF FW D100-32-09-C 100.00 79.20 2.00 6 50.00 78.00 32.00 1.5 B FF WOMT09T3 1.32
(1) Cutting diameter maximum
(2) Number of inserts
(3) Maximum ramping angle
(4) For adaptation options, see page 548
(5) Master insert identification
For inserts, see pages: FF WOCT/WOMT/WOMW (521)

Spare Parts

Designation
FF FW D40-16-06-C SR 34-506/M T-9/51 SR M8X25DIN912
FF FW D50-22-06-C SR 34-506/M T-9/51 SR M10X25 DIN912
FF FW D52-22-06-C SR 34-506/M T-9/51 SR M10X25 DIN912
FF FW D50-22-09-C SR 34-535 BLD T15/S7 SW6-T SR PS 118-0273
FF FW D52-22-09-C SR 34-535 BLD T15/S7 SW6-T SR M10X25 DIN912
FF FW D63-22-09-C SR 34-535 BLD T15/S7 SW6-T SR M10X25 DIN912
FF FW D63-27-09-C SR 34-535 BLD T15/S7 SW6-T SR M12X30DIN912
FF FW D66-22-09-C SR 34-535 BLD T15/S7 SW6-T SR M10X25 DIN912
FF FW D66-27-09-C SR 34-535 BLD T15/S7 SW6-T SR M12X30DIN912
FF FW D80-32-09-C SR 34-535 BLD T15/S7 SW6-T SR M16X30 DIN912
FF FW D100-32-09-C SR 34-535 BLD T15/M7 SW6-T

DCONMS

FF NM
Fast Feed Face Mills Carrying OAL
Octagonal ONHU/MU 0806...
Inserts with 16 Cutting Edges 15°
7.5
DC APMX
DCX
BD
Designation DCX (1) DC CICT (2) APMX OAL Rg (3) DCONMS Arbor (4) MIID (5) kg
FF NM D080-06-27-R08 80.00 64.50 6 2.00 50.00 8.00 27.00 A ONHU 080608-TN 0.84 SR 14-591/H BLD T20/S7 SW6-T
(1) Cutting diameter maximum
(2) Number of inserts
(3) Radius for programming
(4) For adaptation options, see page 548
(5) Master insert identification
For inserts, see pages: ONHU/ONMU-08-TN-MM (515) • ONHU/ONMU-08-TN/HL (515)
Recommended Application Range Cutting Data Recommendation
Ap[mm]
2.5 Material Vc [m/min]
Steel AISI 4340/34CrNiMO6 120-150
2.0 Nodular cast iron GGG 50 170
1.5
Width of Cut (ae) = 56 mm
1.0
0.5
0
0 0.5 1.0 1.5 2.0 2.5 fz[mm/tooth]
