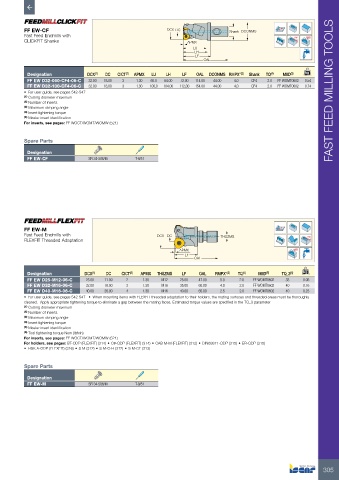

Page 307 - ISCAR(MILLINGCATALOG 38_2021)
P. 307

FF EW-CF                                          DCX  DC               Shank DCONMS
          Fast Feed Endmills with                                                                       Rd°
          CLICKFIT Shanks                                          APMX
                                                                     LU
                                                                     LH
                                                                      LF
                                                                         OAL

           Designation          DCX (1)  DC  CICT (2)  APMX  LU  LH  LF  OAL  DCONMS RMPX° (3)  Shank  TQ (4)  MIID (5)  kg
           FF EW D32-060-CF4-06-C  32.00  18.00  3  1.30  60.0  64.00  72.00  114.00  44.00  4.0  CF4  2.0  FF WOMT0602  0.54
           FF EW D32-100-CF4-06-C  32.00  18.00  3  1.30  100.0  104.00  112.00  154.00  44.00  4.0  CF4  2.0  FF WOMT0602  0.74
          •  For user guide, see pages 542-547                                                                        FAST FEED MILLING TOOLS
          (1)  Cutting diameter maximum
          (2)  Number of inserts
          (3)  Maximum ramping angle
          (4)  Insert tightening torque
          (5)  Master insert identification
          For inserts, see pages: FF WOCT/WOMT/WOMW (521)


          Spare Parts

           Designation
           FF EW-CF             SR 34-506/M      T-9/51














          FF EW-M
          Fast Feed Endmills with                       DCX  DC               THSZMS                         Rd°
          FLEXFIT Threaded Adaptation
                                                                APMX
                                                                  LF
                                                                     OAL

           Designation         DCX (1)  DC  CICT (2)  APMX  THSZMS  LF  OAL  RMPX° (3)  TQ (4)  MIID (5)  TQ_3 (6)  kg
           FF EW D25-M12-06-C  25.00  11.00  2     1.30   M12   25.00  47.00  5.0    2.0  FF WOMT0602  33  0.06
           FF EW D32-M16-06-C  32.00  18.00  3     1.30   M16   35.00  60.00  4.0    2.0  FF WOMT0602  40  0.16
           FF EW D40-M16-06-C  40.00  26.00  4     1.30   M16   40.00  65.00  2.5    2.0  FF WOMT0602  40  0.23
          •  For user guide, see pages 542-547   •  When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly
          cleaned.  Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter
          (1)  Cutting diameter maximum
          (2)  Number of inserts
          (3)  Maximum ramping angle
          (4)  Insert tightening torque
          (5)  Master insert identification
          (6)  Tool tightening torque Nxm (lbfxin)
          For inserts, see pages: FF WOCT/WOMT/WOMW (521)
          For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
          •  HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)


          Spare Parts
           Designation
           FF EW-M              SR 34-506/M      T-9/51
