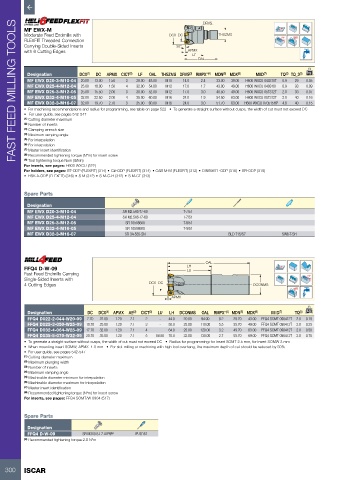

P. 302

FAST FEED MILLING TOOLS
                                                                        DRVS

          MF EWX-M
          Moderate Feed Endmills with                       DCX  DC           THSZMS
          FLEXFIT Threaded Connection                                                               Rd°
          Carrying Double-Sided Inserts                        30°
          with 6 Cutting Edges                                     APMX
                                                                     LF
                                                                       OAL

           Designation       DCX (1)  DC  APMX CICT (2)  LF  OAL  THSZMS DRVS (3)  RMPX° (4)  MDN (5)  MDX (6)  MIID (7)  TQ (8)  TQ_3 (9)  kg
           MF EWX D20-3-M10-04  20.00  13.00  1.50  3  28.00  48.00  M10  14.0  2.4  33.00  39.00  H600 WXCU 040310T  0.9  29  0.05
           MF EWX D25-4-M12-04  25.00  18.00  1.50  4  32.00  54.00  M12  17.0  1.7  43.00  49.00  H600 WXCU 040310T  0.9  33  0.09
           MF EWX D25-3-M12-05  25.00  15.50  2.00  3  30.00  52.00  M12  17.0  3.0  40.50  49.00  H600 WXCU 05T312T  2.0  33  0.07
           MF EWX D32-4-M16-05  32.00  22.50  2.00  4  35.00  60.00  M16  24.0  1.9  54.50  63.00  H600 WXCU 05T312T  2.0  40  0.16
           MF EWX D32-3-M16-07  32.00  19.70  2.70  3  35.00  60.00  M16  24.0  3.0  51.70  63.00  H600 WXCU 070515HP  4.8  40  0.15
          •  For machining recommendations and radius for programming, see table on page 522   •  To generate a straight surface without cusps, the width of cut must not exceed DC
          •   For user guide, see pages 542-547
          (1)  Cutting diameter maximum
          (2)  Number of inserts
          (3)  Clamping wrench size
          (4)  Maximum ramping angle
          (5)  For interpolation
          (6)  For interpolation
          (7)  Master insert identification
          (8)  Recommended tightening torque (N*m) for insert screw
          (9)  Tool tightening torque Nxm (lbfxin)
          For inserts, see pages: H600 WXCU (522)
          For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314)  • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315)
          •  HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313)


          Spare Parts
           Designation
           MF EWX D20-3-M10-04              SR M2.5X6-T7-60      T-7/51
           MF EWX D25-4-M12-04              SR M2.5X6-T7-60      T-7/51
           MF EWX D25-3-M12-05               SR 10508600         T-9/51
           MF EWX D32-4-M16-05               SR 10508600         T-9/51
           MF EWX D32-3-M16-07               SR 34-535-SN                        BLD T15/S7         SW6-T-SH




                                                                         OAL
                                                                   LH
          FFQ4 D-W-09                                              LU
          Fast Feed Endmills Carrying                                                                        Rd°
          Single-Sided Inserts with
          4 Cutting Edges                            DCX DC                               DCONMS

                                                             APMX

           Designation          DC  DCX (1)  APMX  AE (2)  CICT (3)  LU  LH  DCONMS  OAL  RMPX° (4)  MDN (5)  MDX (6)  MIID (7)  TQ (8)  kg
           FFQ4 D022-2-044-W20-09  7.70  22.00  1.20  7.1  2  -  44.0  20.00  94.00  8.2  29.70  43.00  FFQ4 SOMT 090412T  2.0  0.19
           FFQ4 D025-3-050-W25-09  10.70  25.00  1.20  7.1  3  -  50.0  25.00  110.00  5.5  35.70  49.00  FFQ4 SOMT 090412T  2.0  0.25
           FFQ4 D032-4-064-W25-09  17.70  32.00  1.20  7.1  4  -  64.0  25.00  120.00  3.2  49.70  63.00  FFQ4 SOMT 090412T  2.0  0.50
           FFQ4 D035-5-070-W32-09  20.70  35.00  1.20  7.1  5  68.50  70.0  32.00  130.00  2.7  55.70  69.00  FFQ4 SOMT 090412T  2.0  0.70
          •  To generate a straight surface without cusps, the width of cut must not exceed DC   •  Radius for programming: for insert SOMT 2.5 mm, for insert SOMW 3 mm
          •  When mounting insert SOMW, APMX=1.0 mm   •  For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50%
          •  For user guide, see pages 542-547
          (1)  Cutting diameter maximum
          (2)  Maximum plunging width
          (3)  Number of inserts
          (4)  Maximum ramping angle
          (5)  Machinable diameter minimum for interpolation
          (6)  Machinable diameter maximum for interpolation
          (7)  Master insert identification
          (8)  Recommended tightening torque (N*m) for insert screw
          For inserts, see pages: FFQ4 SOMT/W 0904 (517)

          Spare Parts

           Designation
           FFQ4 D-W-09        SR M3X0.5-L7.4 IP9 (a)  IP-9/151
          (a)  Recommended tightening torque:2.0 N*m




   300    ISCAR
