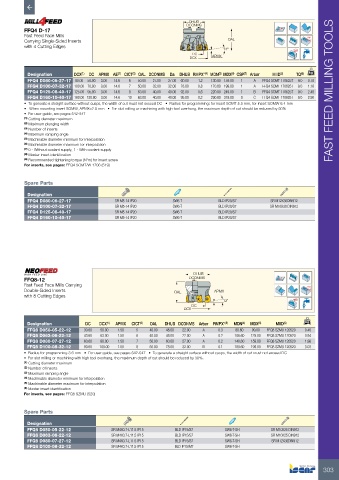

P. 305

DHUB
                                                                   DCONMS

          FFQ4 D-17
          Fast Feed Face Mills                                                                               Rd°
          Carrying Single-Sided Inserts                                          OAL
          with 4 Cutting Edges
                                                                               14°
                                                                     DC
                                                                    DCX     APMX

           Designation     DCX (1)  DC APMX AE (2)  CICT (3)  OAL DCONMS  Da  DHUB RMPX° (4)  MDN (5)  MDX (6)  CSP (7)  Arbor  MIID (8)  TQ (9)  kg
           FFQ4 D080-06-27-17  80.00  50.80  3.00  14.6  6  50.00  27.00  27.00  60.00  1.2  130.80 159.00  1  A  FFQ4 SOMT 170625T  9.0  0.78
           FFQ4 D100-07-32-17 100.00 70.80  3.00  14.6  7  50.00  32.00  32.00  78.00  0.8  170.80 199.00  1  A  FFQ4 SOMT 170625T  9.0  1.18
           FFQ4 D125-08-40-17 125.00 95.80  3.00  14.6  8  63.00  40.00  40.00  92.00  0.6  220.80 249.00  1  B  FFQ4 SOMT 170625T  9.0  2.48 FAST FEED MILLING TOOLS
           FFQ4 D160-10-40-17 160.00 130.80  3.00  14.6  10  63.00  40.00  40.00  95.00  0.2  290.80 319.00  0  C  FFQ4 SOMT 170625T  9.0  2.90
          •  To generate a straight surface without cusps, the width of cut must not exceed DC   •  Radius for programming: for insert SOMT 5.5 mm, for insert SOMW 6.4 mm
          •   When mounting insert SOMW, APMX=2.5 mm   •  For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50%
          •  For user guide, see pages 542-547
          (1)  Cutting diameter maximum
          (2)  Maximum plunging width
          (3)  Number of inserts
          (4)  Maximum ramping angle
          (5)  Machinable diameter minimum for interpolation
          (6)  Machinable diameter maximum for interpolation
          (7)  0 - Without coolant supply, 1 - With coolant supply
          (8)  Master insert identification
          (9)  Recommended tightening torque (N*m) for insert screw
          For inserts, see pages: FFQ4 SOMT/W 1706 (519)

          Spare Parts

           Designation
           FFQ4 D080-06-27-17            SR M5-14 IP20        SW6-T           BLD IP20/S7       SR M12X30DIN912
           FFQ4 D100-07-32-17            SR M5-14 IP20        SW6-T           BLD IP20/S7       SR M16X30 DIN912
           FFQ4 D125-08-40-17            SR M5-14 IP20        SW6-T           BLD IP20/S7
           FFQ4 D160-10-40-17            SR M5-14 IP20        SW6-T           BLD IP20/S7











                                                                     DHUB

         FFQ8-12                                                   DCONMS
         Fast Feed Face Mills Carrying                                                                       Rd°
         Double-Sided Inserts                                 OAL           APMX
         with 8 Cutting Edges
                                                                               12˚
                                                                    DC
                                                                  DCX
           Designation         DC   DCX (1)  APMX  CICT (2)  OAL  DHUB DCONMS Arbor  RMPX° (3)  MDN (4)  MDX (5)  MIID (6)  kg
           FFQ8 D050-05-22-12  30.60  50.00  1.50  5  40.00  48.00  22.00  A  0.3   80.60  99.00  FFQ8 SZMU 120520  0.46
           FFQ8 D063-06-22-12  43.60  63.00  1.50  6  40.00  48.00  22.00  A  0.2  106.60  125.00  FFQ8 SZMU 120520  0.94
           FFQ8 D080-07-27-12  60.60  80.00  1.50  7  50.00  60.00  27.00  A  0.2  140.60  159.00  FFQ8 SZMU 120520  1.98
           FFQ8 D100-08-32-12  80.60  100.00  1.50  8  50.00  78.00  32.00  B  0.1  180.60  199.00  FFQ8 SZMU 120520  3.03
         •  Radius for programming 3.6 mm   •  For user guide, see pages 542-547   •  To generate a straight surface without cusps, the width of cut must not exceed DC
         •  For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 30%.
         (1)  Cutting diameter maximum
         (2)  Number of inserts
         (3)  Maximum ramping angle
         (4)  Machinable diameter minimum for interpolation
         (5)  Machinable diameter maximum for interpolation
         (6)  Master insert identification
         For inserts, see pages: FFQ8 SZMU (520)


         Spare Parts
           Designation
           FFQ8 D050-05-22-12           SR M4X0.7-L11.5 IP15  BLD IP15/S7       SW6-T-SH        SR M10X25 DIN912
           FFQ8 D063-06-22-12           SR M4X0.7-L11.5 IP15  BLD IP15/S7       SW6-T-SH        SR M10X25 DIN912
           FFQ8 D080-07-27-12           SR M4X0.7-L11.5 IP15  BLD IP15/S7       SW6-T-SH        SR M12X30DIN912
           FFQ8 D100-08-32-12           SR M4X0.7-L11.5 IP15  BLD IP15/M7       SW6-T-SH
