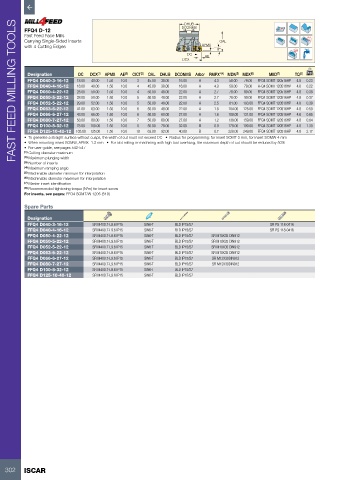

Page 304 - ISCAR(MILLINGCATALOG 38_2021)

FAST FEED MILLING TOOLS
DHUB
DCONMS
FFQ4 D-12
Fast Feed Face Mills Rd°
Carrying Single-Sided Inserts OAL
with 4 Cutting Edges APMX
9°
DC AE
DCX

Designation DC DCX (1) APMX AE (2) CICT (3) OAL DHUB DCONMS Arbor RMPX° (4) MDN (5) MDX (6) MIID (7) TQ (8) kg
FFQ4 D040-3-16-12 18.00 40.00 1.50 10.0 3 45.00 38.00 16.00 A 4.3 58.00 79.00 FFQ4 SOMT 120516HP 4.8 0.23
FFQ4 D040-4-16-12 18.00 40.00 1.50 10.0 4 45.00 38.00 16.00 A 4.3 58.00 79.00 FFQ4 SOMT 120516HP 4.8 0.22
FFQ4 D050-4-22-12 28.00 50.00 1.50 10.0 4 50.00 48.00 22.00 A 2.7 78.00 99.00 FFQ4 SOMT 120516HP 4.8 0.38
FFQ4 D050-5-22-12 28.00 50.00 1.50 10.0 5 50.00 48.00 22.00 A 2.7 78.00 99.00 FFQ4 SOMT 120516HP 4.8 0.37
FFQ4 D052-5-22-12 29.00 52.00 1.50 10.0 5 50.00 48.00 22.00 A 2.5 81.00 103.00 FFQ4 SOMT 120516HP 4.8 0.39
FFQ4 D063-6-22-12 41.00 63.00 1.50 10.0 6 50.00 48.00 22.00 A 1.8 104.00 125.00 FFQ4 SOMT 120516HP 4.8 0.50
FFQ4 D066-6-27-12 43.00 66.00 1.50 10.0 6 50.00 60.00 27.00 A 1.6 109.00 131.00 FFQ4 SOMT 120516HP 4.8 0.65
FFQ4 D080-7-27-12 58.00 80.00 1.50 10.0 7 50.00 60.00 27.00 A 1.2 138.00 159.00 FFQ4 SOMT 120516HP 4.8 0.84
FFQ4 D100-8-32-12 78.00 100.00 1.50 10.0 8 50.00 78.00 32.00 B 0.9 178.00 199.00 FFQ4 SOMT 120516HP 4.8 1.30
FFQ4 D125-10-40-12 103.00 125.00 1.50 10.0 10 63.00 92.00 40.00 B 0.7 228.00 249.00 FFQ4 SOMT 120516HP 4.8 2.17
• To generate a straight surface without cusps, the width of cut must not exceed DC • Radius for programming: for insert SOMT 3 mm, for insert SOMW 4 mm
• When mounting insert SOMW, APMX=1.2 mm • For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50%
• For user guide, see pages 542-547
(1) Cutting diameter maximum
(2) Maximum plunging width
(3) Number of inserts
(4) Maximum ramping angle
(5) Machinable diameter minimum for interpolation
(6) Machinable diameter maximum for interpolation
(7) Master insert identification
(8) Recommended tightening torque (N*m) for insert screw
For inserts, see pages: FFQ4 SOMT/W 1205 (518)

Spare Parts
Designation
FFQ4 D040-3-16-12 SR M4X0.7-L9.6 IP15 SW6-T BLD IP15/S7 SR PS 118-0416
FFQ4 D040-4-16-12 SR M4X0.7-L9.6 IP15 SW6-T BLD IP15/S7 SR PS 118-0416
FFQ4 D050-4-22-12 SR M4X0.7-L9.6 IP15 SW6-T BLD IP15/S7 SR M10X35 DIN912
FFQ4 D050-5-22-12 SR M4X0.7-L9.6 IP15 SW6-T BLD IP15/S7 SR M10X35 DIN912
FFQ4 D052-5-22-12 SR M4X0.7-L9.6 IP15 SW6-T BLD IP15/S7 SR M10X35 DIN912
FFQ4 D063-6-22-12 SR M4X0.7-L9.6 IP15 SW6-T BLD IP15/S7 SR M10X35 DIN912
FFQ4 D066-6-27-12 SR M4X0.7-L9.6 IP15 SW6-T BLD IP15/S7 SR M12X30DIN912
FFQ4 D080-7-27-12 SR M4X0.7-L9.6 IP15 SW6-T BLD IP15/S7 SR M12X30DIN912
FFQ4 D100-8-32-12 SR M4X0.7-L9.6 IP15 SW6-T BLD IP15/S7
FFQ4 D125-10-40-12 SR M4X0.7-L9.6 IP15 SW6-T BLD IP15/S7
