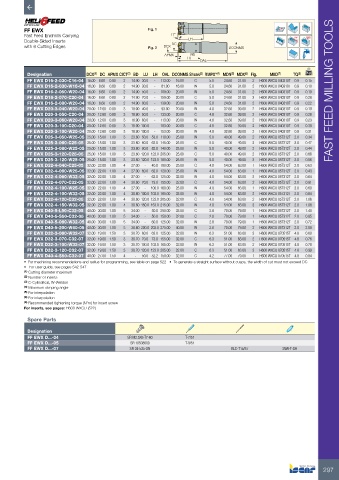

Page 299 - ISCAR(MILLINGCATALOG 38_2021)

FF EWX Fig. 1
Fast Feed Endmills Carrying 17˚ Rd°
Double-Sided Inserts DC LH
with 6 Cutting Edges Fig. 2 DCX DCONMS
APMX BD
LU
OAL
Designation DCX (1) DC APMX CICT (2) BD LU LH OAL DCONMS Shank (3) RMPX° (4) MDN (5) MDX (6) Fig. MIID (7) TQ (8) kg
FF EWX D16-2-030-C16-04 16.00 8.60 0.80 2 14.90 30.0 - 113.00 16.00 C 5.0 24.60 31.00 2 H600 WXCU 040310T 0.9 0.15
FF EWX D16-2-030-W16-04 16.00 8.60 0.80 2 14.90 30.0 - 81.00 16.00 W 5.0 24.60 31.00 2 H600 WXCU 040310T 0.9 0.10
FF EWX D16-2-050-W20-04 16.00 8.60 0.80 2 14.90 50.0 - 109.00 20.00 W 5.0 24.60 31.00 2 H600 WXCU 040310T 0.9 0.19 FAST FEED MILLING TOOLS
FF EWX D16-2-070-C20-04 16.00 8.60 0.80 2 14.90 70.0 - 159.00 20.00 C 5.0 24.60 31.00 2 H600 WXCU 040310T 0.9 0.28
FF EWX D16-2-080-W20-04 16.00 8.60 0.80 2 14.90 80.0 - 139.00 20.00 W 5.0 24.60 31.00 2 H600 WXCU 040310T 0.9 0.22
FF EWX D20-3-040-W20-04 20.00 12.60 0.80 3 18.90 40.0 - 93.00 20.00 W 4.8 32.60 39.00 2 H600 WXCU 040310T 0.9 0.19
FF EWX D20-3-050-C20-04 20.00 12.60 0.80 3 18.90 50.0 - 133.00 20.00 C 4.8 32.60 39.00 2 H600 WXCU 040310T 0.9 0.28
FF EWX D20-3-060-W20-04 20.00 12.60 0.80 3 18.90 60.0 - 113.00 20.00 W 4.8 32.60 39.00 2 H600 WXCU 040310T 0.9 0.23
FF EWX D20-3-100-C20-04 20.00 12.60 0.80 3 18.90 100.0 - 183.00 20.00 C 4.8 32.60 39.00 2 H600 WXCU 040310T 0.9 0.38
FF EWX D20-3-100-W20-04 20.00 12.60 0.80 3 18.90 100.0 - 153.00 20.00 W 4.8 32.60 39.00 2 H600 WXCU 040310T 0.9 0.31
FF EWX D25-3-050-W25-05 25.00 15.00 1.00 3 23.60 50.0 53.0 110.00 25.00 W 5.0 40.00 49.00 2 H600 WXCU 05T312T 2.0 0.34
FF EWX D25-3-060-C25-05 25.00 15.00 1.00 3 23.60 60.0 63.0 145.00 25.00 C 5.0 40.00 49.00 2 H600 WXCU 05T312T 2.0 0.47
FF EWX D25-3-080-W25-05 25.00 15.00 1.00 3 23.60 80.0 83.0 140.00 25.00 W 5.0 40.00 49.00 2 H600 WXCU 05T312T 2.0 0.44
FF EWX D25-3-120-C25-05 25.00 15.00 1.00 3 23.60 120.0 123.0 205.00 25.00 C 5.0 40.00 49.00 2 H600 WXCU 05T312T 2.0 0.66
FF EWX D25-3-120-W25-05 25.00 15.00 1.00 3 23.60 120.0 123.0 180.00 25.00 W 5.0 40.00 49.00 2 H600 WXCU 05T312T 2.0 0.56
FF EWX D32-4-040-C25-05 32.00 22.00 1.00 4 27.00 - 40.0 180.00 25.00 C 4.0 54.00 63.00 1 H600 WXCU 05T312T 2.0 0.63
FF EWX D32-4-060-W25-05 32.00 22.00 1.00 4 27.00 60.0 63.0 120.00 25.00 W 4.0 54.00 63.00 1 H600 WXCU 05T312T 2.0 0.43
FF EWX D32-4-060-W32-05 32.00 22.00 1.00 4 27.00 - 63.0 125.00 32.00 W 4.0 54.00 63.00 2 H600 WXCU 05T312T 2.0 0.64
FF EWX D32-4-070-C32-05 32.00 22.00 1.00 4 30.60 70.0 73.0 155.00 32.00 C 4.0 54.00 63.00 2 H600 WXCU 05T312T 2.0 0.81
FF EWX D32-4-100-W25-05 32.00 22.00 1.00 4 27.00 - 100.0 160.00 25.00 W 4.0 54.00 63.00 1 H600 WXCU 05T312T 2.0 0.60
FF EWX D32-4-100-W32-05 32.00 22.00 1.00 4 30.60 100.0 103.0 165.00 32.00 W 4.0 54.00 63.00 2 H600 WXCU 05T312T 2.0 0.84
FF EWX D32-4-120-C32-05 32.00 22.00 1.00 4 30.60 120.0 123.0 205.00 32.00 C 4.0 54.00 63.00 2 H600 WXCU 05T312T 2.0 1.06
FF EWX D32-4-150-W32-05 32.00 22.00 1.00 4 30.60 150.0 153.0 215.00 32.00 W 4.0 54.00 63.00 2 H600 WXCU 05T312T 2.0 1.08
FF EWX D40-5-L50-C32-05 40.00 30.00 1.00 5 34.00 - 50.0 250.00 32.00 C 2.8 70.00 79.00 1 H600 WXCU 05T312T 2.0 1.40
FF EWX D40-5-S50-C32-05 40.00 30.00 1.00 5 34.00 - 50.0 150.00 32.00 C 2.8 70.00 79.00 1 H600 WXCU 05T312T 2.0 0.85
FF EWX D40-5-060-W32-05 40.00 30.00 1.00 5 34.00 - 60.0 125.00 32.00 W 2.8 70.00 79.00 1 H600 WXCU 05T312T 2.0 0.72
FF EWX D40-5-200-W40-05 40.00 30.00 1.00 5 38.60 200.0 203.0 275.00 40.00 W 2.8 70.00 79.00 2 H600 WXCU 05T312T 2.0 2.08
FF EWX D32-3-060-W32-07 32.00 19.00 1.50 3 30.70 60.0 63.0 125.00 32.00 W 6.3 51.00 63.00 2 H600 WXCU 070515T 4.8 0.60
FF EWX D32-3-070-C32-07 32.00 19.00 1.50 3 30.70 70.0 73.0 155.00 32.00 C 6.3 51.00 63.00 2 H600 WXCU 070515T 4.8 0.76
FF EWX D32-3-100-W32-07 32.00 19.00 1.50 3 30.70 100.0 103.0 165.00 32.00 W 6.3 51.00 63.00 2 H600 WXCU 070515T 4.8 0.78
FF EWX D32-3-120-C32-07 32.00 19.00 1.50 3 30.70 120.0 123.0 205.00 32.00 C 6.3 51.00 63.00 2 H600 WXCU 070515T 4.8 0.99
FF EWX D40-4-S50-C32-07 40.00 27.00 1.50 4 - 50.0 52.2 150.00 32.00 C 4.2 77.00 79.00 1 H600 WXCU 070515T 4.8 0.84
• For machining recommendations and radius for programming, see table on page 522 • To generate a straight surface without cusps, the width of cut must not exceed DC
• For user guide, see pages 542-547
(1) Cutting diameter maximum
(2) Number of inserts
(3) C-Cylindrical, W-Weldon
(4) Maximum ramping angle
(5) For interpolation
(6) For interpolation
(8) Recommended tightening torque (N*m) for insert screw
For inserts, see pages: H600 WXCU (522)
Spare Parts

Designation
FF EWX D...-04 SR M2.5X6-T7-60 T-7/51
FF EWX D...-05 SR 10508600 T-9/51
FF EWX D...-07 SR 34-535-SN BLD T15/S7 SW6-T-SH
