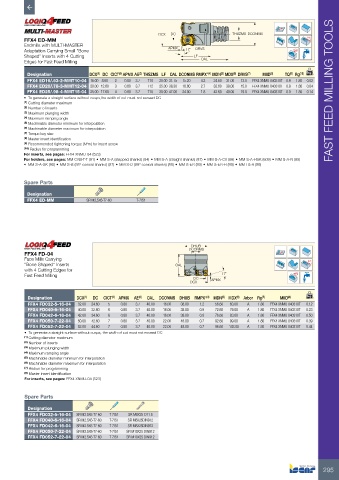

Page 297 - ISCAR(MILLINGCATALOG 38_2021)
P. 297

DCX  DC                   THSZMS  DCONMS

         FFX4 ED-MM                                                                                          Rd°
         Endmills with MULTI-MASTER                         APMX
         Adaptation Carrying Small "Bone                          17˚  DRVS
         Shaped” Inserts with 4 Cutting                              LF
         Edges for Fast Feed Milling                                    OAL

                                                                               (5)
                                                                          (4)
                                                  (3)
                                           (2)
           Designation          DCX (1)  DC CICT APMX AE THSZMS LF OAL DCONMS RMPX° MDN MDX (6)  DRVS (7)  MIID (8)  TQ (9)  Rg (10)  kg
           FFX4 ED16/.63-2-MMT10-04 16.00 8.60  2  0.80  3.7  T10  20.00 31.75  15.20  4.3  24.60  31.00  13.0  FFX4 XNMU 040310T 0.9  1.80  0.02
           FFX4 ED20/.78-3-MMT12-04 20.00 12.60  3  0.80  3.7  T12  25.00 38.30  18.80  2.7  32.60  39.00  15.0  FFX4 XNMU 040310T 0.9  1.80  0.04
           FFX4 ED25/.98-4-MMT15-04 25.00 17.60  4  0.80  3.7  T15  30.00 47.00  24.00  1.8  42.60  49.00  19.0  FFX4 XNMU 040310T 0.9  1.80  0.14 FAST FEED MILLING TOOLS
         •  To generate a straight surface without cusps,the width of cut must not exceed DC
         (1)  Cutting diameter maximum
         (2)  Number of inserts
         (3)  Maximum plunging width
         (4)  Maximum ramping angle
         (5)  Machinable diameter minimum for interpolation
         (6)  Machinable diameter maximum for interpolation
         (7)  Torque key size
         (8)  Master insert identification
         (9)  Recommended tightening torque (N*m) for insert screw
         (10)  Radius for programming
         For inserts, see pages: FFX4 XNMU-04 (523)
         For holders, see pages: MM CAB-T-T (91) • MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87) • MM S-A-C# (86) • MM S-A-HSK (609) • MM S-A-N (85)
         •  MM S-A-SK (90) • MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88) • MM S-ER (89) • MM S-ER-H (89) • MM TS-A (86)
         Spare Parts

           Designation
           FFX4 ED-MM          SR M2.5X6-T7-60   T-7/51









                                                                    DHUB
                                                                   DCONMS

          FFX4 FD-04
          Face Mills Carrying                                                                                Rd°
          "Bone Shaped” Inserts                                OAL
          with 4 Cutting Edges for
          Fast Feed Milling                                                    17˚
                                                                     DC    APMX
                                                                    DCX
           Designation      DCX (1)  DC  CICT (2)  APMX  AE (3)  OAL  DCONMS DHUB RMPX° (4)  MDN (5)  MDX (6)  Arbor Rg (7)  MIID (8)  kg
           FFX4 FD032-5-16-04  32.00  24.60  5  0.80  3.7  40.00  16.00  38.00  1.2  56.60  63.00  A  1.80  FFX4 XNMU 040310T  0.12
           FFX4 FD040-6-16-04  40.00  32.60  6  0.80  3.7  40.00  16.00  38.00  0.9  72.60  79.00  A  1.80  FFX4 XNMU 040310T  0.23
           FFX4 FD042-6-16-04  42.00  34.60  6  0.80  3.7  40.00  16.00  38.00  0.8  76.60  83.00  A  1.80  FFX4 XNMU 040310T  0.50
           FFX4 FD050-7-22-04  50.00  42.60  7  0.80  3.7  40.00  22.00  48.00  0.7  92.60  99.00  A  1.80  FFX4 XNMU 040310T  0.39
           FFX4 FD052-7-22-04  52.00  44.60  7  0.80  3.7  40.00  22.00  48.00  0.7  96.60  103.00  A  1.80  FFX4 XNMU 040310T  0.44
          •  To generate a straight surface without cusps, the width of cut must not exceed DC
          (1)  Cutting diameter maximum
          (2)  Number of inserts
          (3)  Maximum plunging width
          (4)  Maximum ramping angle
          (5)  Machinable diameter minimum for interpolation
          (6)  Machinable diameter maximum for interpolation
          (7)  Radius for programming
          (8)  Master insert identification
          For inserts, see pages: FFX4 XNMU-04 (523)


          Spare Parts

           Designation
           FFX4 FD032-5-16-04  SR M2.5X6-T7-60  T-7/51  SR M8X25-D11.5
           FFX4 FD040-6-16-04  SR M2.5X6-T7-60  T-7/51  SR M8X25DIN912
           FFX4 FD042-6-16-04  SR M2.5X6-T7-60  T-7/51  SR M8X25DIN912
           FFX4 FD050-7-22-04  SR M2.5X6-T7-60  T-7/51  SR M10X25 DIN912
           FFX4 FD052-7-22-04  SR M2.5X6-T7-60  T-7/51  SR M10X25 DIN912
