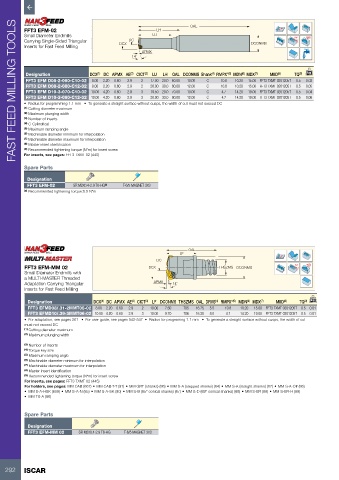

P. 294
FAST FEED MILLING TOOLS
OAL
FFT3 EFM-02 LH
Small Diameter Endmills LU Rd°
Carrying Single-Sided Triangular DCX DC DCONMS
Inserts for Fast Feed Milling
APMX
14˚
Designation DCX (1) DC APMX AE (2) CICT (3) LU LH OAL DCONMS Shank (4) RMPX° (5) MDN (6) MDX (7) MIID (8) TQ (9) kg
FFT3 EFM D08-2-060-C10-02 8.00 2.20 0.60 2.9 2 17.00 20.0 60.00 10.00 C 10.8 10.20 15.00 FFT3 TXMT 0201205T 0.5 0.03
FFT3 EFM D08-2-080-C12-02 8.00 2.20 0.60 2.9 2 26.00 30.0 80.00 12.00 C 10.8 10.20 15.00 FFT3 TXMT 0201205T 0.5 0.05
FFT3 EFM D10-3-070-C10-02 10.00 4.20 0.60 2.9 3 19.50 20.0 70.00 10.00 C 4.7 14.20 19.00 FFT3 TXMT 0201205T 0.5 0.04
FFT3 EFM D10-3-090-C12-02 10.00 4.20 0.60 2.9 3 30.00 33.0 90.00 12.00 C 4.7 14.20 19.00 FFT3 TXMT 0201205T 0.5 0.06
• Radius for programming 1.1 mm • To generate a straight surface without cusps, the width of cut must not exceed DC
(1) Cutting diameter maximum
(2) Maximum plunging width
(3) Number of inserts
(4) C-Cylindrical
(5) Maximum ramping angle
(6) Machinable diameter minimum for interpolation
(7) Machinable diameter maximum for interpolation
(8) Master insert identification
(9) Recommended tightening torque (N*m) for insert screw
For inserts, see pages: FFT3 TXMT 02 (445)
Spare Parts
Designation
FFT3 EFM-02 SR M2X0.4-2.9 T6-HG (a) T-6/5 MAGNET 3X3
(a) Recommended tightening torque:0.5 N*m
OAL
LF
DC
FFT3 EFM-MM 02 DCX THSZMS DCONMS Rd°
Small Diameter Endmills with
a MULTI-MASTER Threaded
Adaptation Carrying Triangular APMX 14˚
Inserts for Fast Feed Milling
Designation DCX (1) DC APMX AE (2) CICT (3) LF DCONMS THSZMS OAL DRVS (4) RMPX° (5) MDN (6) MDX (7) MIID (8) TQ (9) kg
FFT3 EFMD08/.31-2MMT05-02 8.00 2.20 0.60 2.9 2 10.00 7.60 T05 16.75 5.5 10.8 10.20 15.00 FFT3 TXMT 0201205T 0.5 0.01
FFT3 EFMD10/.39-3MMT06-02 10.00 4.20 0.60 2.9 3 10.00 9.70 T06 16.30 8.0 4.7 14.20 19.00 FFT3 TXMT 0201205T 0.5 0.01
• For adaptation, see pages 261 • For user guide, see pages 542-547 • Radius for programing 1.1 mm • To generate a straight surface without cusps, the width of cut
must not exceed DC
(1) Cutting diameter maximum
(2) Maximum plunging width
(3) Number of inserts
(4) Torque key size
(5) Maximum ramping angle
(6) Machinable diameter minimum for interpolation
(7) Machinable diameter maximum for interpolation
(8) Master insert identification
(9) Recommended tightening torque (N*m) for insert screw
For inserts, see pages: FFT3 TXMT 02 (445)
For holders, see pages: MM CAB (667) • MM CAB-T-T (91) • MM GRT (shanks) (86) • MM S-A (stepped shanks) (84) • MM S-A (straight shanks) (87) • MM S-A-C# (86)
• MM S-A-HSK (609) • MM S-A-N (85) • MM S-A-SK (90) • MM S-B (85° conical shanks) (87) • MM S-D (89° conical shanks) (88) • MM S-ER (89) • MM S-ER-H (89)
• MM TS-A (86)
Spare Parts
Designation
FFT3 EFM-MM 02 SR M2X0.4-2.9 T6-HG T-6/5 MAGNET 3X3
292 ISCAR
