USER GUIDE
                                                                                                                      PROFILING TOOLS

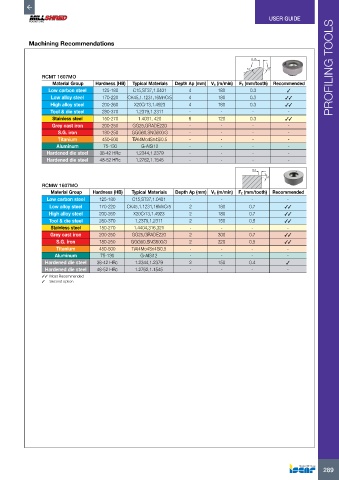

           Machining Recommendations


                                                                                         0.15
                                                                                        12˚    20˚
                RCMT 1607MO
                   Material Group  Hardness (HB)  Typical Materials  Depth Ap (mm)  Vc (m/min)  Fz (mm/tooth)  Recommended
                  Low carbon steel   125-180    C15,ST37,1.0401    4          180        0.3          3
                   Low alloy steel   170-220  CK45,1.1231,16MnCr5  4          180        0.3         33
                   High alloy steel   200-260   X20Cr13,1.4923     4          180        0.3         33
                   Tool & die steel  280-370     1.2379,1.2311      -          -          -           -
                   Stainless steel   150-270      1.4031, 420      6          120        0.3         33
                   Grey cast iron    200-250    GG25,GRADE220       -          -          -           -
                     S.G. iron       180-250   GGG60,SNG600/3       -          -          -           -
                     Titanium        450-500   TiAI4Mo4Sn4Si0.5     -          -          -           -
                     Aluminum        75-130        G-AISi12         -          -          -           -
                 Hardened die steel   38-42 HRc  1.2344,1.2379      -          -          -           -
                 Hardened die steel   48-52 HRc  1.2762,1.1545      -          -          -           -

                                                                                          0.3
                                                                                              20˚
                RCMW 1607MO
                   Material Group  Hardness (HB)  Typical Materials  Depth Ap (mm) Vc (m/min)  Fz (mm/tooth)  Recommended
                 Low carbon steel   125-180    C15,ST37,1.0401      -          -         -            -
                  Low alloy steel   170-220   CK45,1.1231,16MnCr5   2         180        0.7         33
                  High alloy steel   200-260    X20Cr13,1.4923      2         180        0.7         33
                  Tool & die steel  280-370     1.2379,1.2311       2         150        0.5         33
                   Stainless steel  150-270     1.4404,316,321      -          -         -            -
                   Grey cast iron   200-250    GG25,GRADE220        2         300        0.7         33
                     S.G. iron      180-250    GGG60,SNG600/3       2         220        0.5         33
                     Titanium       450-500    TiAI4Mo4Sn4Si0.5     -          -         -            -
                    Aluminum        75-130        G-AISi12          -          -         -            -
                 Hardened die steel   38-42 HRc  1.2344,1.2379      2         150        0.4          3
                 Hardened die steel   48-52 HRc  1.2762,1.1545      -          -         -            -
                33  Most Recommended
                3   Second option







































                                                                                                                   289
