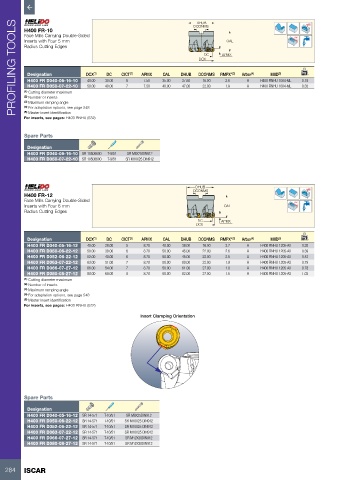

Page 286 - ISCAR(MILLINGCATALOG 38_2021)

PROFILING TOOLS H400 FR-10 DCX (1) 30.00 CICT (2) APMX 35.00 DHUB DCONMS RMPX° (3) Arbor (4) H400 RNHU 1004-ML Rd° 0.18
DHUB

Face Mills Carrying Double-Sided
Inserts with Four 5 mm
OAL
Radius Cutting Edges
DC
APMX
DCX
kg
(5)
MIID
DCONMS
DC
Designation
OAL
H400 FR D040-06-16-10
37.60
6
7.50
40.00
A
2.6
16.00
H400 FR D050-07-22-10
H400 RNHU 1004-ML
40.00
A
0.33
47.00
40.00
22.00
1.9
7.50
7
50.00
(1) Cutting diameter maximum
(2) Number of inserts
(3) Maximum ramping angle
(4) For adaptation options, see page 548
(5) Master insert identification
For inserts, see pages: H400 RNHU (532)
Spare Parts
Designation
H400 FR D040-06-16-10 SR 10508600 T-9/51 SR M8X25DIN912
H400 FR D050-07-22-10 SR 10508600 T-9/51 SR M10X25 DIN912
DHUB
DCONMS

H400 FR-12
Face Mills Carrying Double-Sided Rd°
Inserts with Four 6 mm OAL
Radius Cutting Edges
DC APMX
DCX
Designation DCX (1) DC CICT (2) APMX OAL DHUB DCONMS RMPX° (3) Arbor (4) MIID (5) kg
H400 FR D040-05-16-12 40.00 28.00 5 8.70 40.00 38.00 16.00 3.7 A H400 RNHU 1205-AX 0.20
H400 FR D050-06-22-12 50.00 38.00 6 8.70 50.00 45.00 22.00 2.6 A H400 RNHU 1205-AX 0.39
H400 FR D052-06-22-12 52.00 40.00 6 8.70 50.00 45.00 22.00 2.5 A H400 RNHU 1205-AX 0.42
H400 FR D063-07-22-12 63.00 51.00 7 8.70 50.00 60.00 22.00 1.9 A H400 RNHU 1205-AX 0.79
H400 FR D066-07-27-12 66.00 54.00 7 8.70 50.00 61.00 27.00 1.8 A H400 RNHU 1205-AX 0.78
H400 FR D080-08-27-12 80.00 68.00 8 8.70 50.00 62.00 27.00 1.5 A H400 RNHU 1205-AX 1.03
(1) Cutting diameter maximum
(2) Number of inserts
(3) Maximum ramping angle
(4) For adaptation options, see page 548
(5) Master insert identification
For inserts, see pages: H400 RNHU (532)
Insert Clamping Orientation

Spare Parts

Designation
H400 FR D040-05-16-12 SR 14-571 T-10/51 SR M8X25DIN912
H400 FR D050-06-22-12 SR 14-571 T-10/51 SR M10X25 DIN912
H400 FR D052-06-22-12 SR 14-571 T-10/51 SR M10X25 DIN912
H400 FR D063-07-22-12 SR 14-571 T-10/51 SR M10X25 DIN912
H400 FR D066-07-27-12 SR 14-571 T-10/51 SR M12X30DIN912
H400 FR D080-08-27-12 SR 14-571 T-10/51 SR M12X30DIN912
