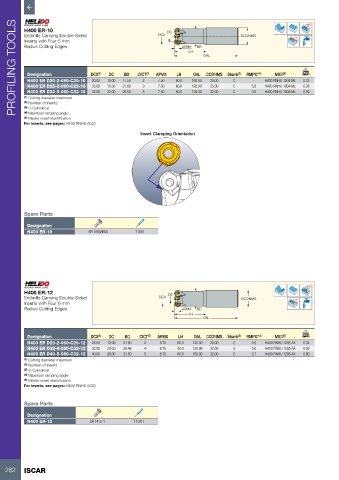

Page 284 - ISCAR(MILLINGCATALOG 38_2021)

PROFILING TOOLS H400 ER-10 DCX (1) 10.00 17.50 CICT (2) APMX DC 60.0 APMX 160.00 OAL 20.00 Shank (3) DCONMS - (4) H400 RNHU 1004-ML Rd° kg

Endmills Carrying Double-Sided
DCX
Inserts with Four 5 mm
Radius Cutting Edges
BD
LH

(5)
DCONMS
OAL
Designation
LH
RMPX°
DC
MIID
BD
H400 ER D20-2-060-C20-10
20.00
0.33
2
7.50
C
H400 ER D25-3-060-C25-10
60.0
7.50
25.00
H400 RNHU 1004-ML
5.8
0.35
21.60
C
3
120.00
15.00
25.00
5
3.8
C
0.59
H400 RNHU 1004-ML
60.0
7.50
32.00
120.00
32.00
H400 ER D32-5-060-C32-10
22.00
29.60
(1) Cutting diameter maximum
(2) Number of inserts
(3) C-Cylindrical
(4) Maximum ramping angle
(5) Master insert identification
For inserts, see pages: H400 RNHU (532)
Insert Clamping Orientation
Spare Parts
Designation
H400 ER-10 SR 10508600 T-9/51

H400 ER-12 DC
Endmills Carrying Double-Sided DCX DCONMS Rd°
Inserts with Four 6 mm
Radius Cutting Edges APMX BD
LH
OAL
Designation DCX (1) DC BD CICT (2) APMX LH OAL DCONMS Shank (3) RMPX° (4) MIID (5) kg
H400 ER D25-2-060-C25-12 25.00 13.00 21.60 2 8.70 60.0 120.00 25.00 C 5.6 H400 RNHU 1205-AX 0.34
H400 ER D32-4-060-C32-12 32.00 20.00 28.40 4 8.70 60.0 120.00 32.00 C 5.6 H400 RNHU 1205-AX 0.58
H400 ER D40-5-060-C32-12 40.00 28.00 31.50 5 8.70 60.0 150.00 32.00 C 3.7 H400 RNHU 1205-AX 0.80
(1) Cutting diameter maximum
(2) Number of inserts
(3) C-Cylindrical
(4) Maximum ramping angle
(5) Master insert identification
For inserts, see pages: H400 RNHU (532)

Spare Parts
Designation
H400 ER-12 SR 14-571 T-10/51

282 ISCAR
