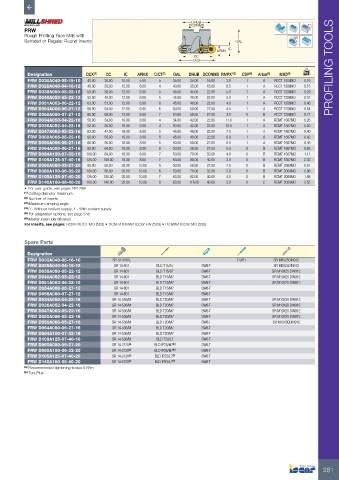

Page 283 - ISCAR(MILLINGCATALOG 38_2021)

DHUB
DCONMS Rd°

FRW
Rough Profiling Face Mills with
Serrated or Regular Round Inserts OAL
APMX IC
DC
DCX

Designation DCX (1) DC IC APMX CICT (2) OAL DHUB DCONMS RMPX° (3) CSP (4) Arbor (5) MIID (6) kg PROFILING TOOLS
FRW D030A040-05-16-10 40.00 30.00 10.00 5.00 5 35.00 35.00 16.00 3.0 1 A RCCT 1004MO 0.16
FRW D028A040-04-16-12 40.00 28.00 12.00 6.00 4 40.00 35.00 16.00 6.5 1 A RCCT 1206MO 0.15
FRW D038A050-05-22-12 50.00 38.00 12.00 6.00 5 45.00 45.00 22.00 5.0 1 A RCCT 1206MO 0.29
FRW D040A052-05-22-12 52.00 40.00 12.00 6.00 5 45.00 45.00 22.00 5.0 1 A RCCT 1206MO 0.31
FRW D051A063-06-22-12 63.00 51.00 12.00 6.00 6 45.00 48.00 22.00 4.0 1 A RCCT 1206MO 0.46
FRW D054A066-06-27-12 66.00 54.00 12.00 6.00 6 50.00 50.00 27.00 4.0 1 A RCCT 1206MO 0.54
FRW D068A080-07-27-12 80.00 68.00 12.00 6.00 7 50.00 58.50 27.00 3.0 0 B RCCT 1206MO 0.71
FRW D034A050-04-22-16 50.00 34.00 16.00 8.00 4 54.00 42.00 22.00 11.0 1 A RCMT 1607MO 0.26
FRW D036A052-04-22-16 52.00 36.00 16.00 8.00 4 50.00 42.00 22.00 10.0 1 A RCMT 1607MO 0.26
FRW D047A063-05-22-16 63.00 47.00 16.00 8.00 5 45.00 48.00 22.00 7.0 1 A RCMT 1607MO 0.40
FRW D050A066-05-22-16 66.00 50.00 16.00 8.00 5 45.00 48.00 22.00 6.0 1 A RCMT 1607MO 0.42
FRW D050A066-05-27-16 66.00 50.00 16.00 8.00 5 50.00 50.00 27.00 6.0 1 A RCMT 1607MO 0.46
FRW D064A080-06-27-16 80.00 64.00 16.00 8.00 6 50.00 58.50 27.00 5.0 0 B RCMT 1607MO 0.65
FRW D084A100-07-32-16 100.00 84.00 16.00 8.00 7 50.00 70.00 32.00 4.0 0 B RCMT 1607MO 1.11
FRW D109A125-07-40-16 125.00 109.00 16.00 8.00 7 63.00 90.00 40.00 3.0 0 B RCMT 1607MO 2.33
FRW D060A080-05-27-20 80.00 60.00 20.00 10.00 5 50.00 58.50 27.00 7.0 0 B RCMT 2009MO 0.61
FRW D080A100-06-32-20 100.00 80.00 20.00 10.00 6 50.00 70.00 32.00 5.0 0 B RCMT 2009MO 0.98
FRW D105A125-07-40-20 125.00 105.00 20.00 10.00 7 63.00 82.00 40.00 4.0 0 B RCMT 2009MO 1.98
FRW D140A160-08-40-20 160.00 140.00 20.00 10.00 8 63.00 116.00 40.00 3.0 0 C RCMT 2009MO 3.55
• For user guide, see pages 287-289
(1) Cutting diameter maximum
(2) Number of inserts
(3) Maximum ramping angle
(4) 0 - Without coolant supply, 1 - With coolant supply
(5) For adaptation options, see page 548
(6) Master insert identification
For inserts, see pages: RCMT/RCCT-MO (528) • RCMT/RCMW/RCCW-FW (529) • RCMW/RCCW-MO (528)

Spare Parts

Designation
FRW D030A040-05-16-10 SR 34-506/L T-9/51 SR M8X25DIN912
FRW D028A040-04-16-12 SR 14-601 BLD T15/S7 SW6-T SR M8X25DIN912
FRW D038A050-05-22-12 SR 14-601 BLD T15/S7 SW6-T SR M10X25 DIN912
FRW D040A052-05-22-12 SR 14-601 BLD T15/M7 SW6-T SR M10X25 DIN912
FRW D051A063-06-22-12 SR 14-601 BLD T15/M7 SW6-T SR M10X25 DIN912
FRW D054A066-06-27-12 SR 14-601 BLD T15/M7 SW6-T
FRW D068A080-07-27-12 SR 14-601 BLD T15/M7 SW6-T
FRW D034A050-04-22-16 SR 14-536/M BLD T20/M7 SW6-T SR M10X30 DIN912
FRW D036A052-04-22-16 SR 14-536/M BLD T20/M7 SW6-T SR M10X30 DIN912
FRW D047A063-05-22-16 SR 14-536/M BLD T20/M7 SW6-T SR M10X25 DIN912
FRW D050A066-05-22-16 SR 14-536/M BLD T20/M7 SW6-T SR M10X25 DIN912
FRW D050A066-05-27-16 SR 14-536/M BLD T20/M7 SW6-T SR M12X30DIN912
FRW D064A080-06-27-16 SR 14-536/M BLD T20/M7 SW6-T
FRW D084A100-07-32-16 SR 14-536/M BLD T20/M7 SW6-T
FRW D109A125-07-40-16 SR 14-536/M BLD T20/L7 SW6-T
FRW D060A080-05-27-20 SR 14-2120 (a) BLD IP25/M7 (b) SW6-T
FRW D080A100-06-32-20 SR 14-2120 (a) BLD IP25/M7 (b) SW6-T
FRW D105A125-07-40-20 SR 14-2120 (a) BLD IP25/L7 (b) SW6-T
FRW D140A160-08-40-20 SR 14-2120 (a) BLD IP25/L7 (b) SW6-T
(a) Recommended tightening torque:9 N*m
(b) Torx Plus
